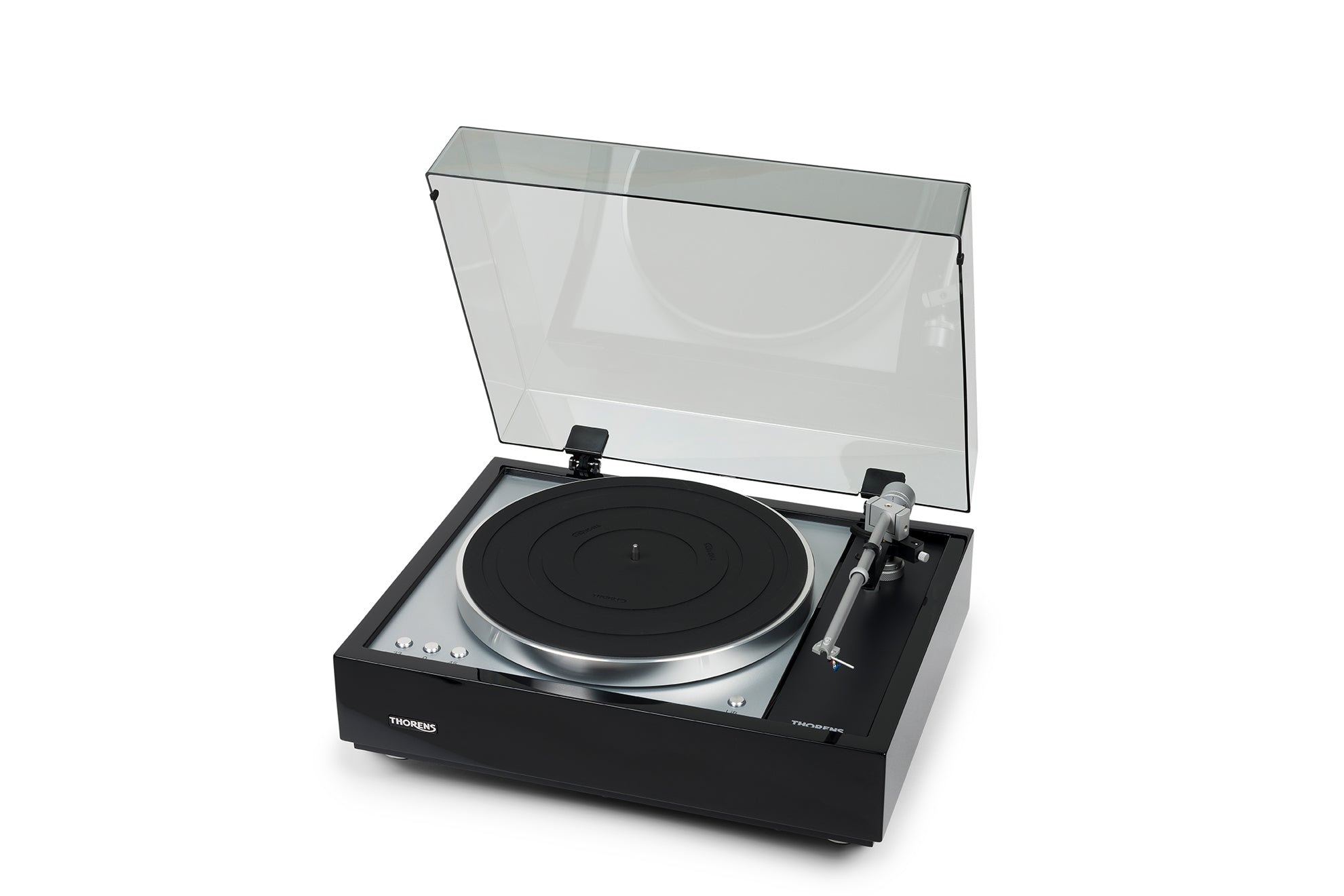

Thorens TD 1601
Thorens TD 1601 - High End Sub Chassis Turntable
Return of Thorens DNA with additional features

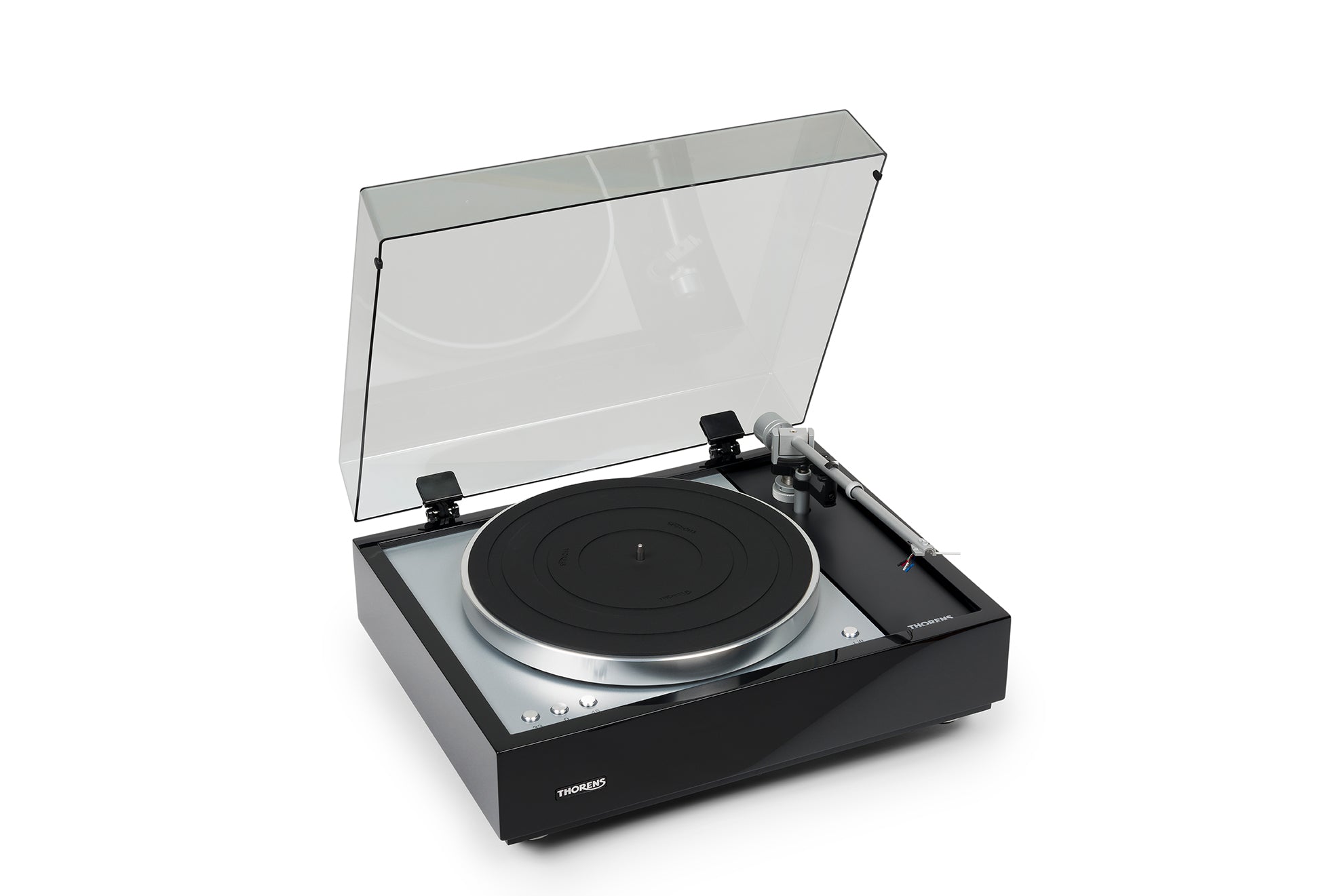

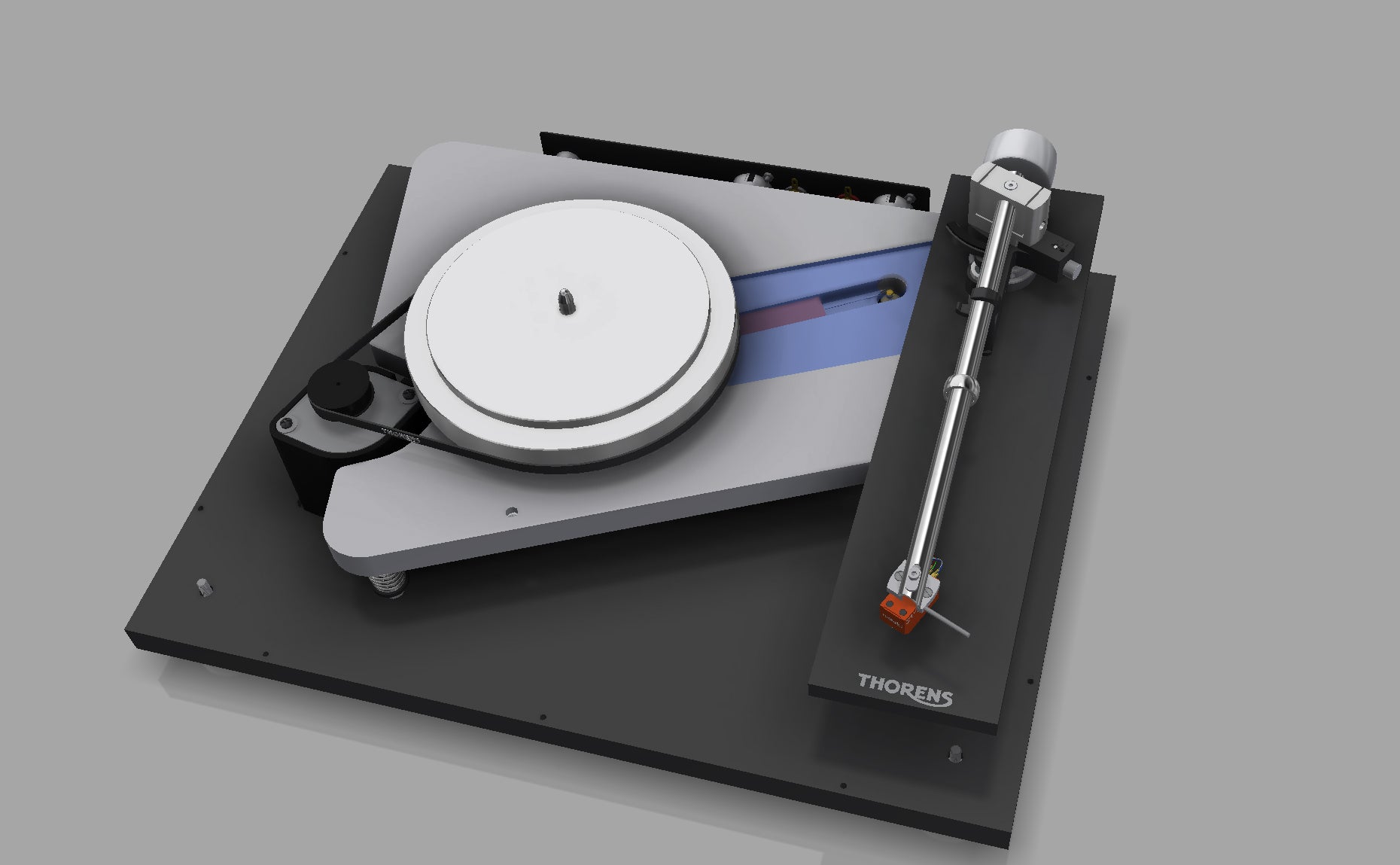

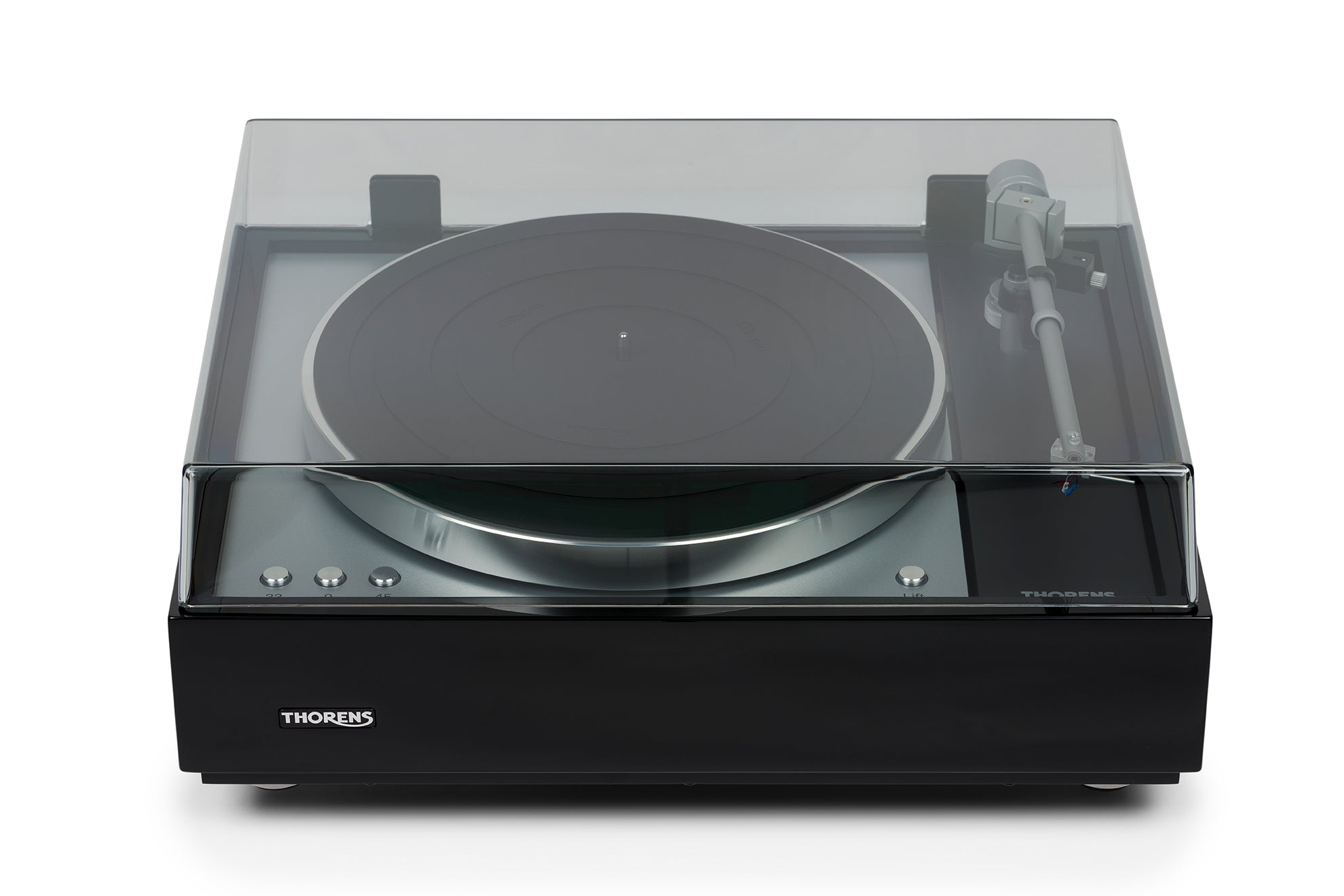

Thorens TD 1601 combines everything TD 1600 brings with some additional features regarding comfort and connection to amplifiers. Classical wooden plinth, two-part platter with inner belt and thick rubber mat, powerful motor control unit, arm board and acrylic dust cover are expanded by balanced outputs and functions for easier handling.

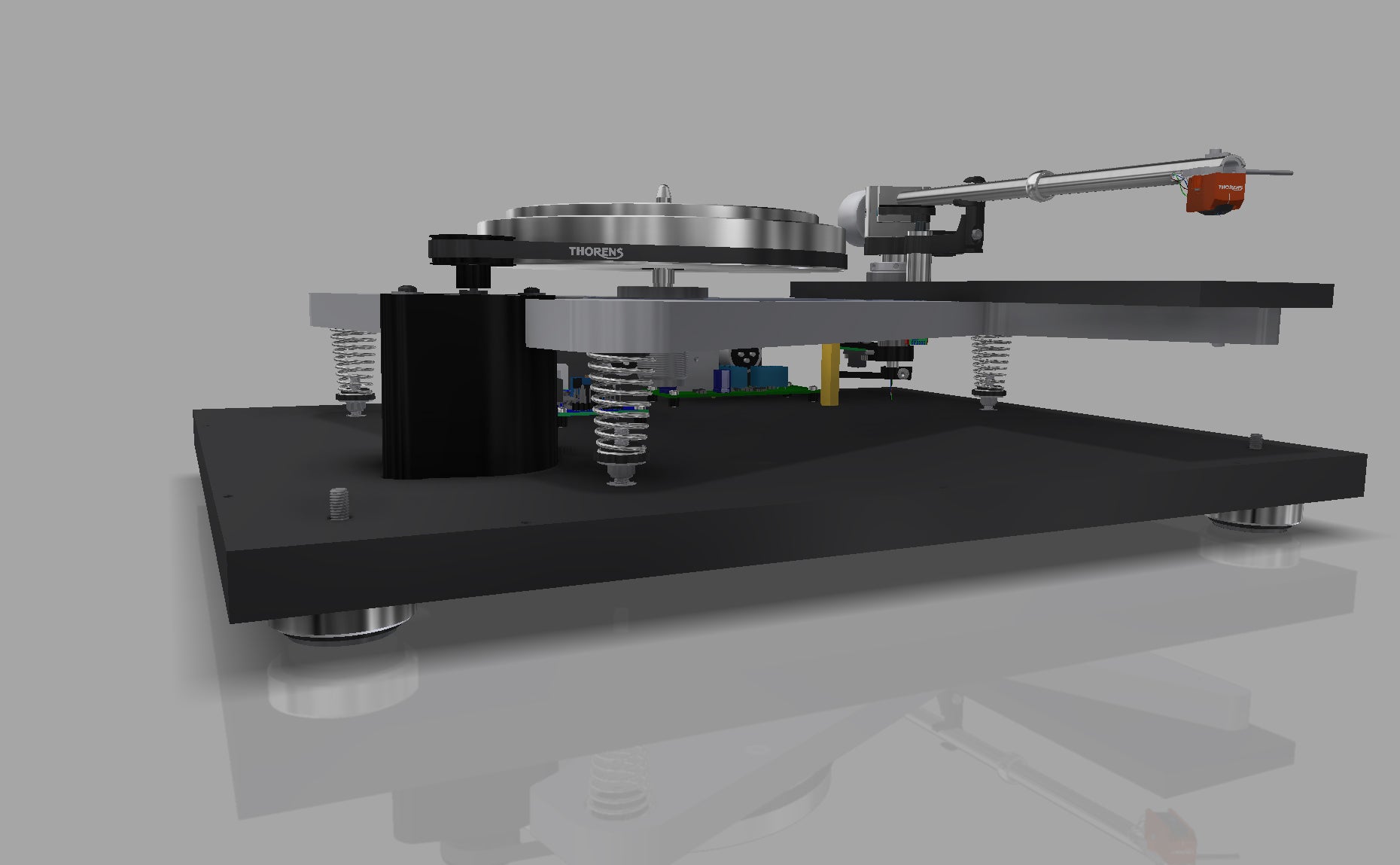

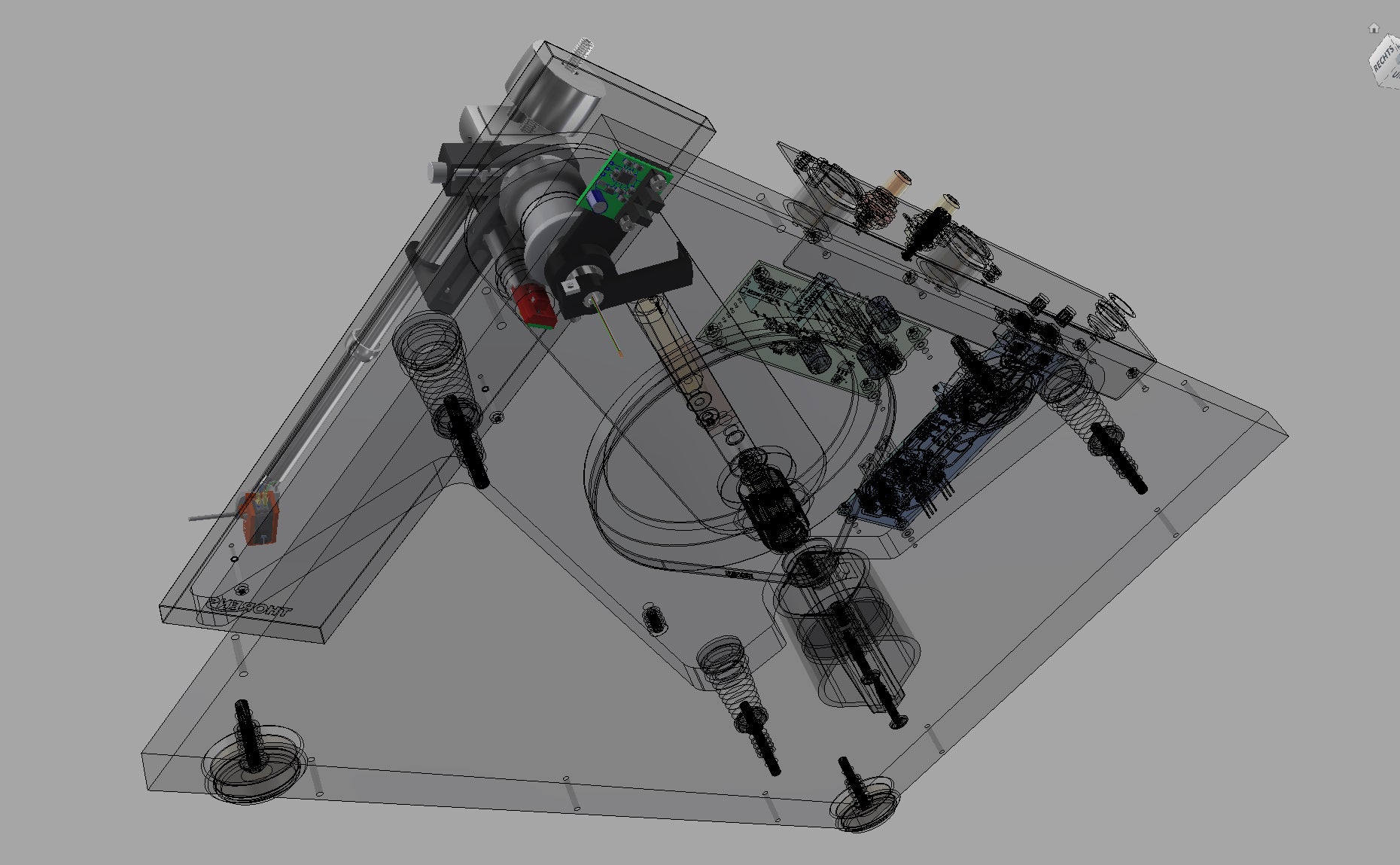

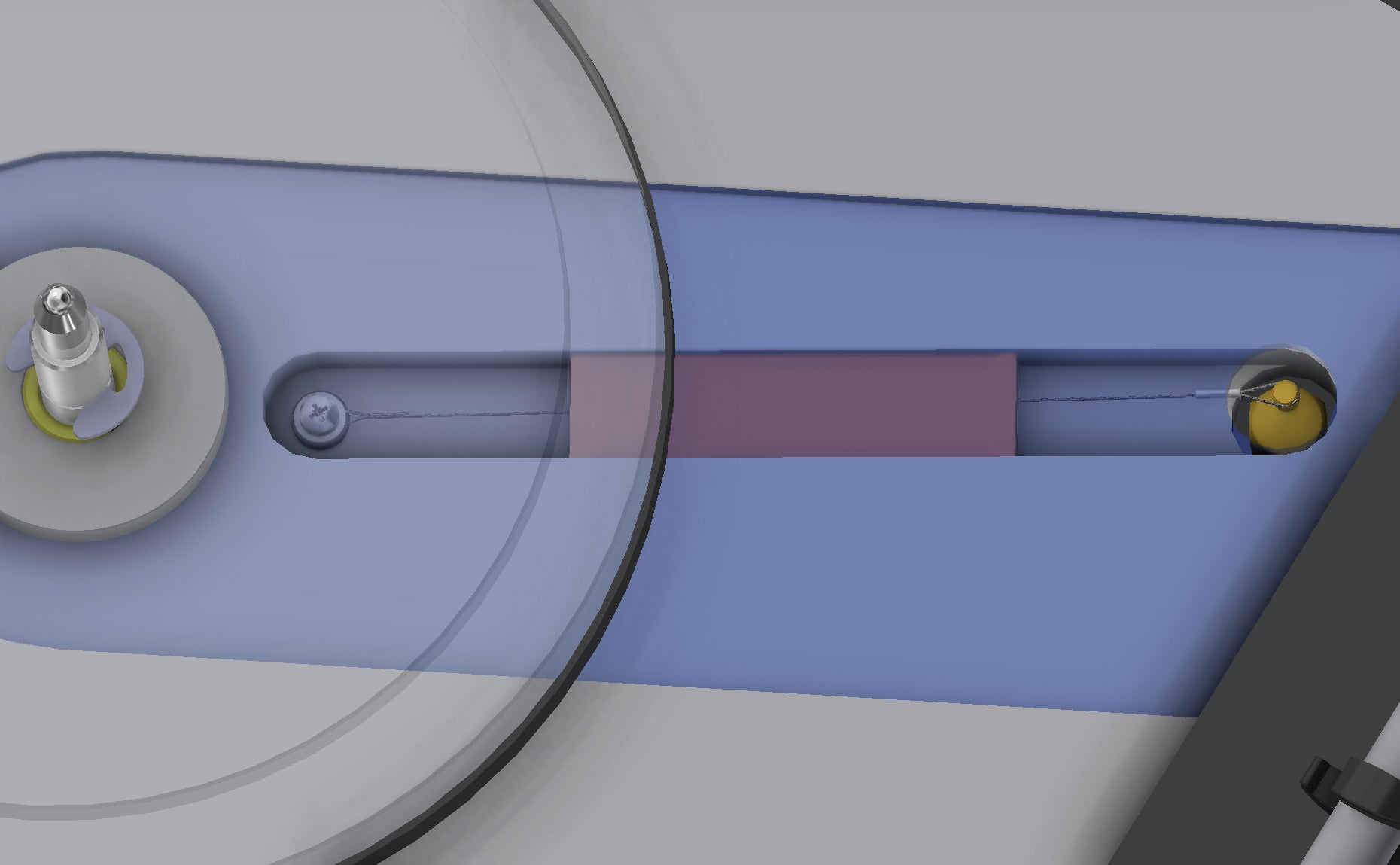

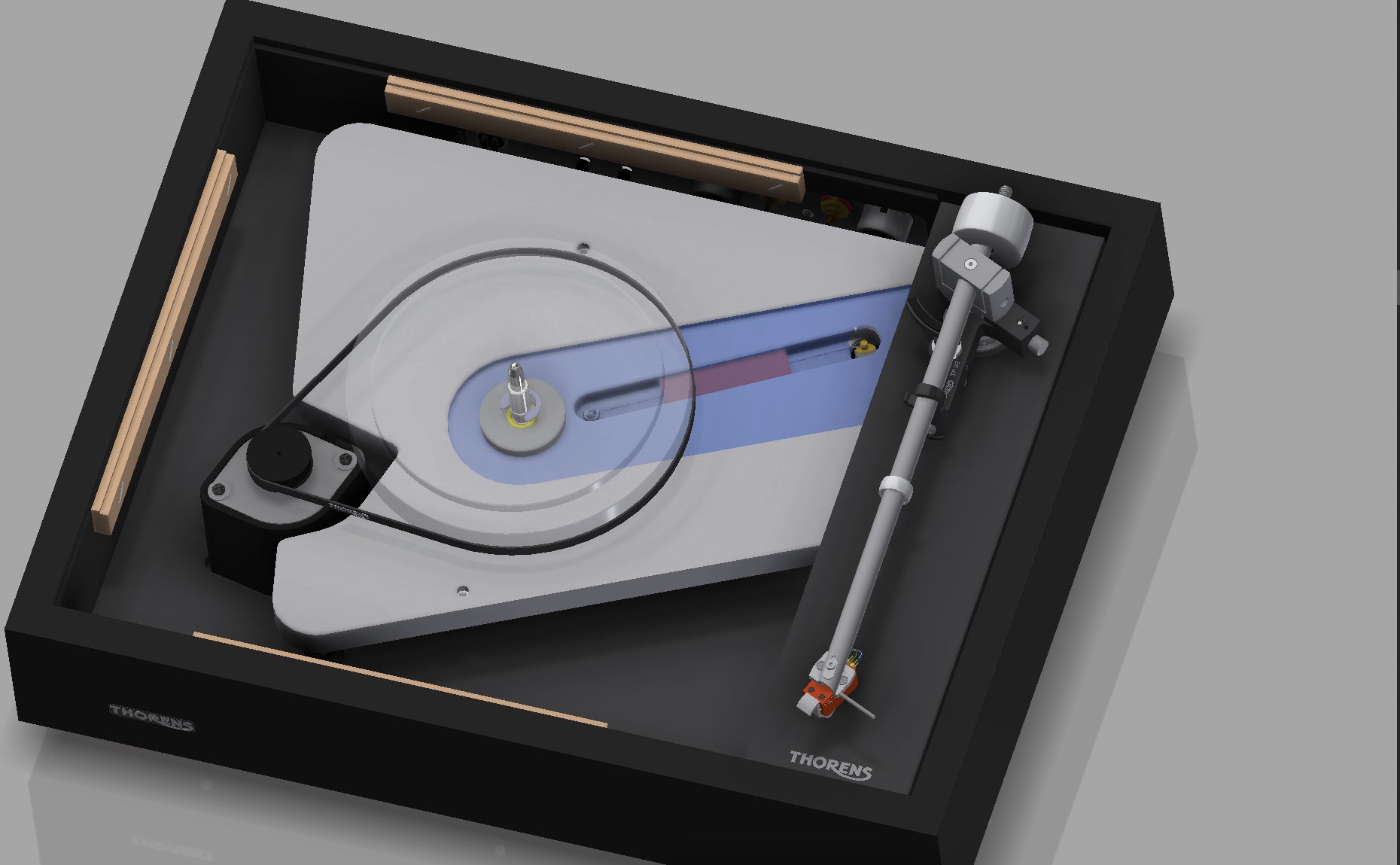

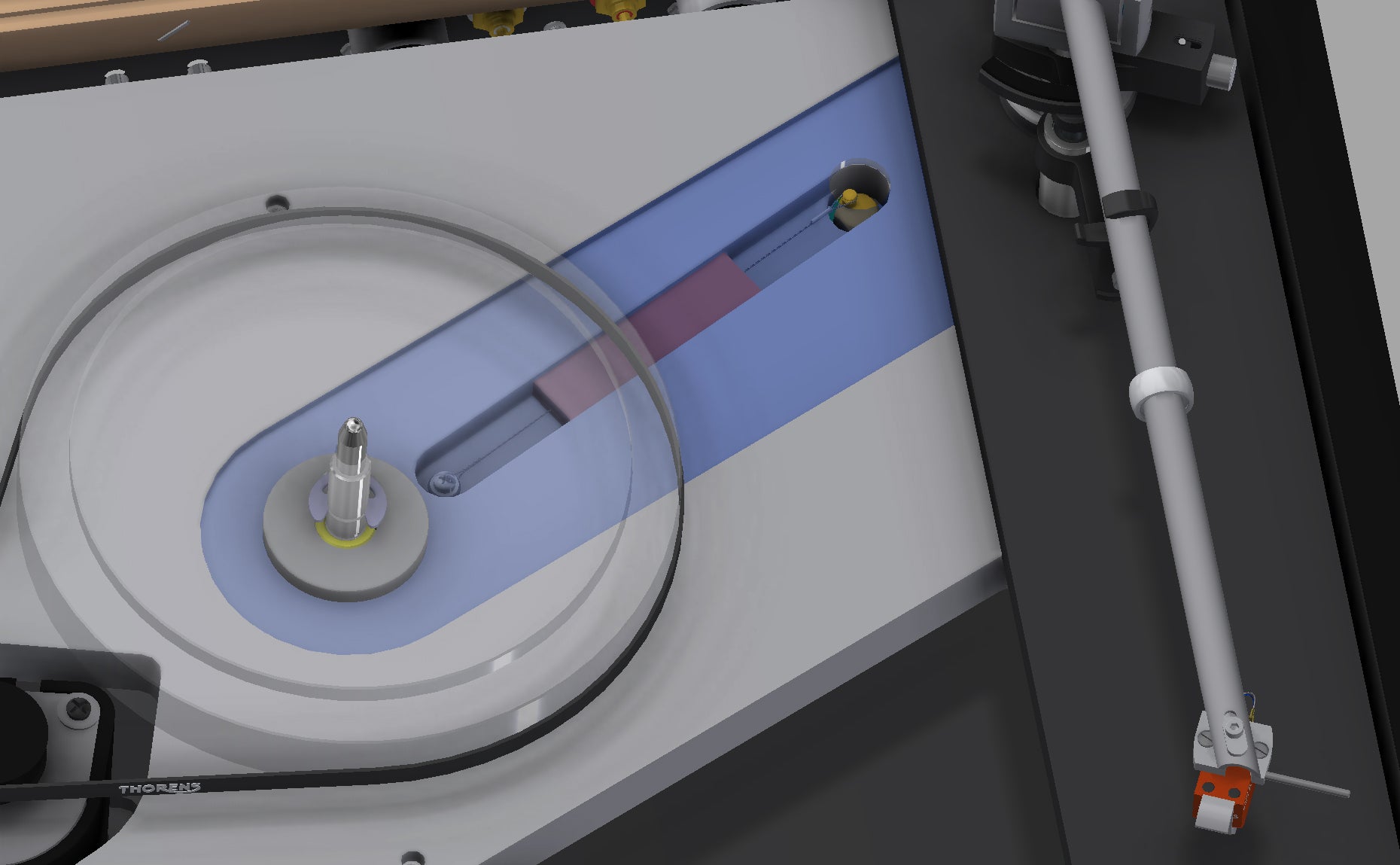

The conical springs for sub chassis are not mounted on top board any longer but standing on the bottom. Additionally, a small but strong tightened thread made of steel connects sub chassis with a steel pin on the bottom and so prevents sub chassis from staggering and allows only vertical movement.

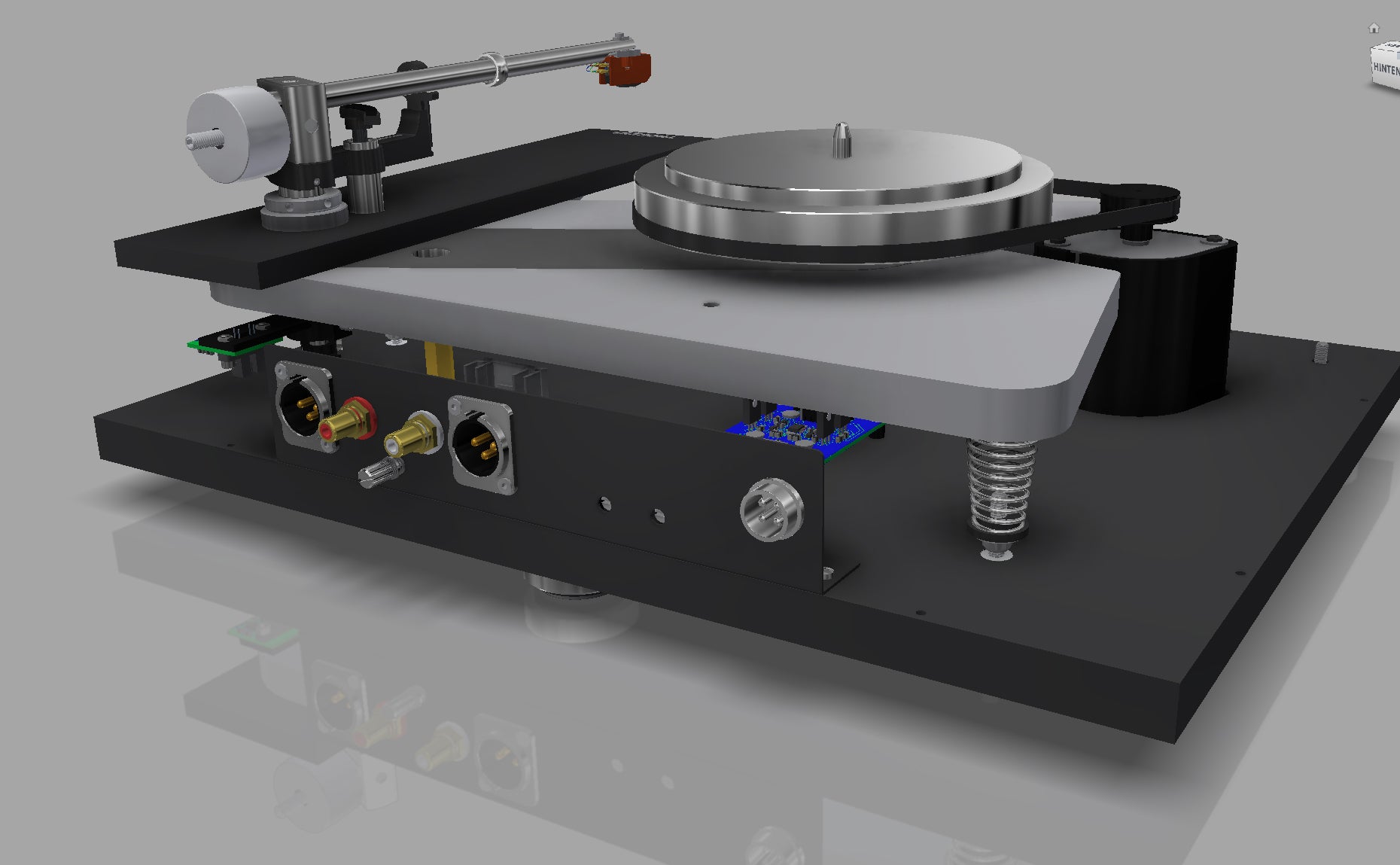

An electrical lift is included, too and a contactless auto shut off. XLR jacks provide a real balanced connection to amplifiers.
Special Features
- Stabilized sub chassis on three conical springs
- Polished precision belt
- Two part platter
- Adjustable belt tension
- Electronical controlled motor
- Electrical lift
- Contactless auto shut off
- Balanced (XLR) and unbalanced (RCA) output
- Thorens precision tonearm TP 92 9“
Specifications
Function | Manual turntable with sub-chassis, auto shut off, electrical lift |
Drive System | Belt, Sub Platter Aluminum |
Motor | Electronically controlled and stabilized AC synchronous motor |
Speeds | 33-1/3, 45 rpm. |
Speed | Select Electronical |
Platter | 12” / 4,2 kg (aluminum) |
Tonearm | Thorens TP 92 |
Anti-Skating | Magnetic (TP 92) |
Shut Off | Yes |
Outputs | RCA/Balanced XLR |
Power supply |

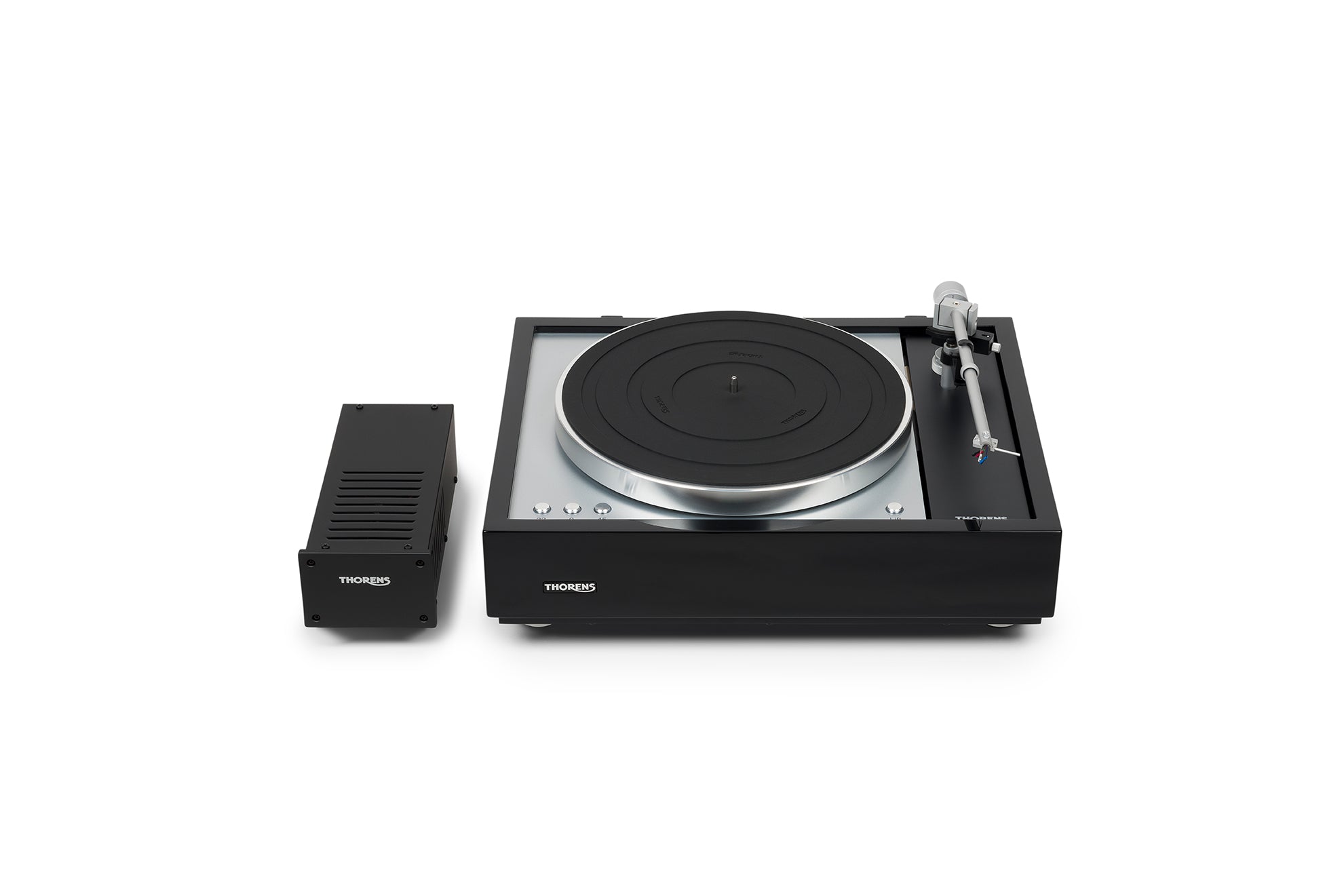

external power supply (115/230 V depending on type) |
Dimensions | 454 x 180 x 369 mm (W x H x D) |
Weight | 11 Kg |

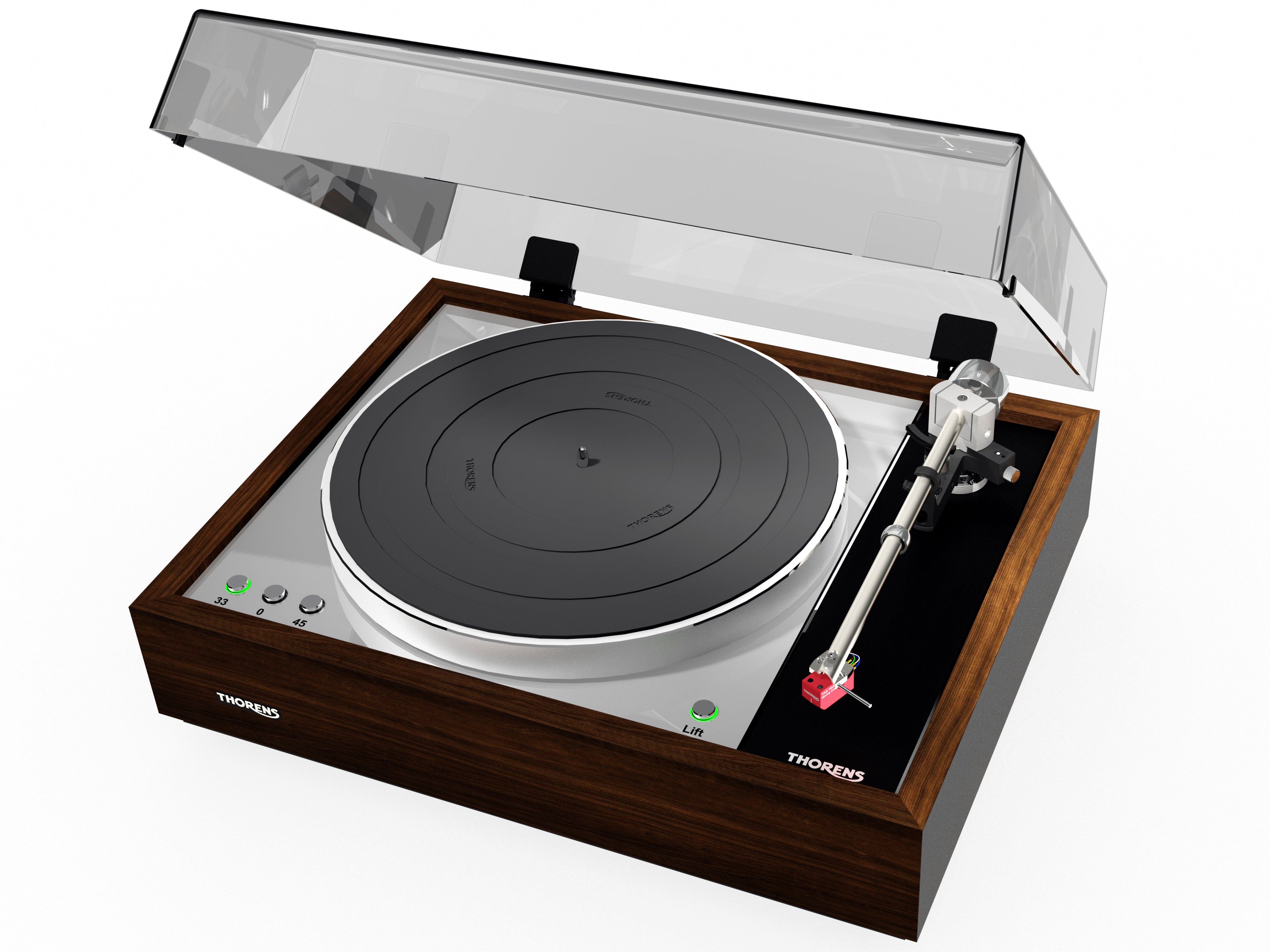

Finish | solid wooden plinth, black high gloss, walnut high gloss, top board made of triCom |
What's included | Power Supply, Acrylic Dust Cover |
