Thorens TD 124 DD
Thorens TD 124 DD - High End Direct Drive
With the new TD 124 DD, Thorens is reviving one of the most legendary turntables in the brand’s history. The original concept of the TD 124 has been massively improved upon, using modern approaches, and now offers an unparalleled playback quality.
Thorens TD 124 DD – Tradition Meets Innovation
The original TD 124 was introduced in 1957 and has been used for decades in countless broadcast studios around the world. Ambitious music lovers also quickly discovered the highly precise turntable for themselves; a dedicated fan base has remained loyal to the TD 124 to this day.

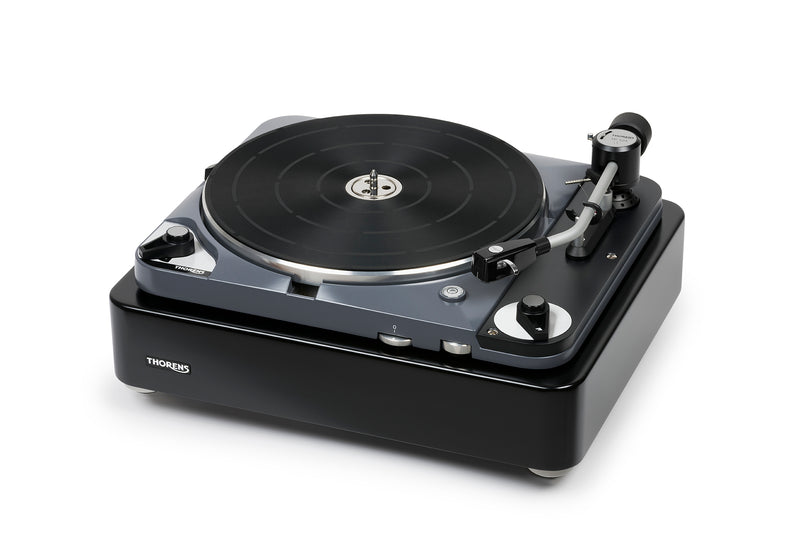

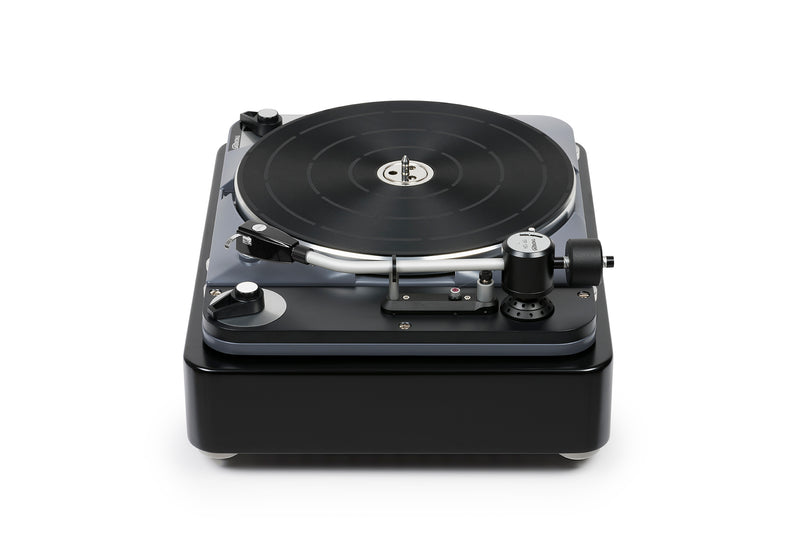

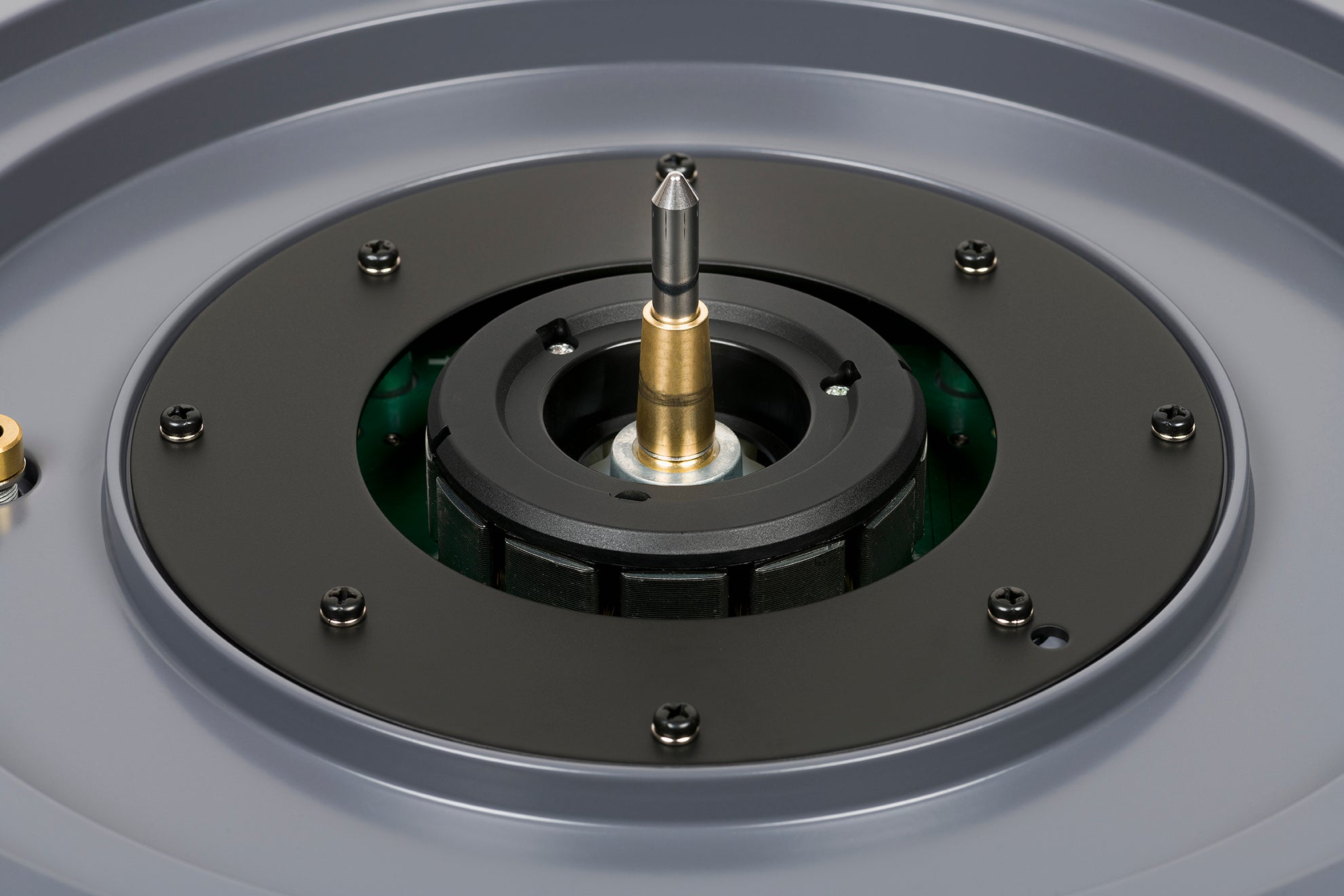

Thorens is now building on this tradition with the completely newly developed TD 124 DD and continues it with innovative technologies. The purist design and basic construction are based on the original, but the height-adjustable aluminium chassis now rests on vibration-damping rubber elements. Instead of the original drive with friction wheel and belt, the new TD 124 DD uses a "High Precision" Direct Drive. This provides powerful torque, allows precise speed control, and keeps unwanted vibrations from the drive away from the platter.
Thorens TD 124 DD – Build For The Best Sound

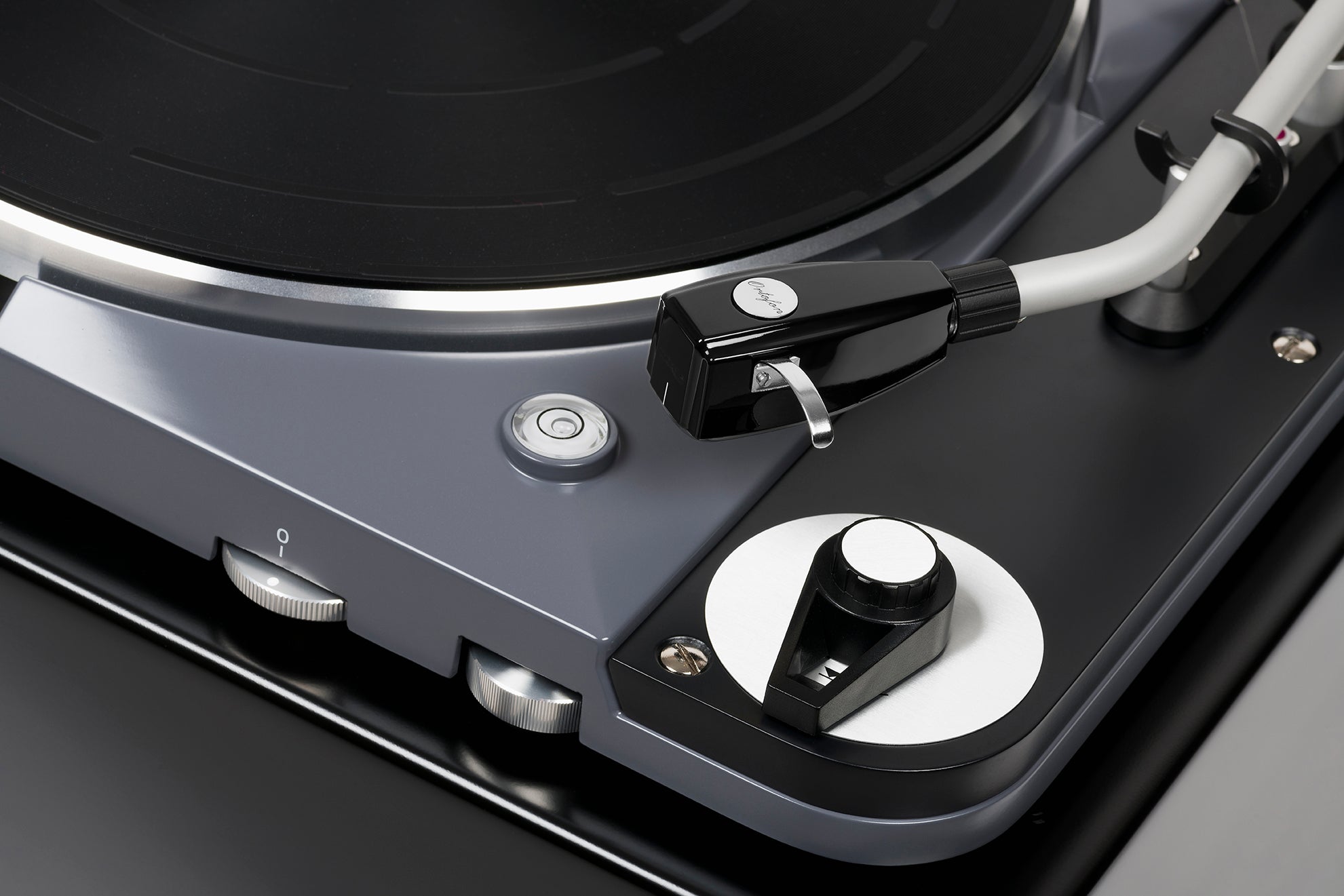

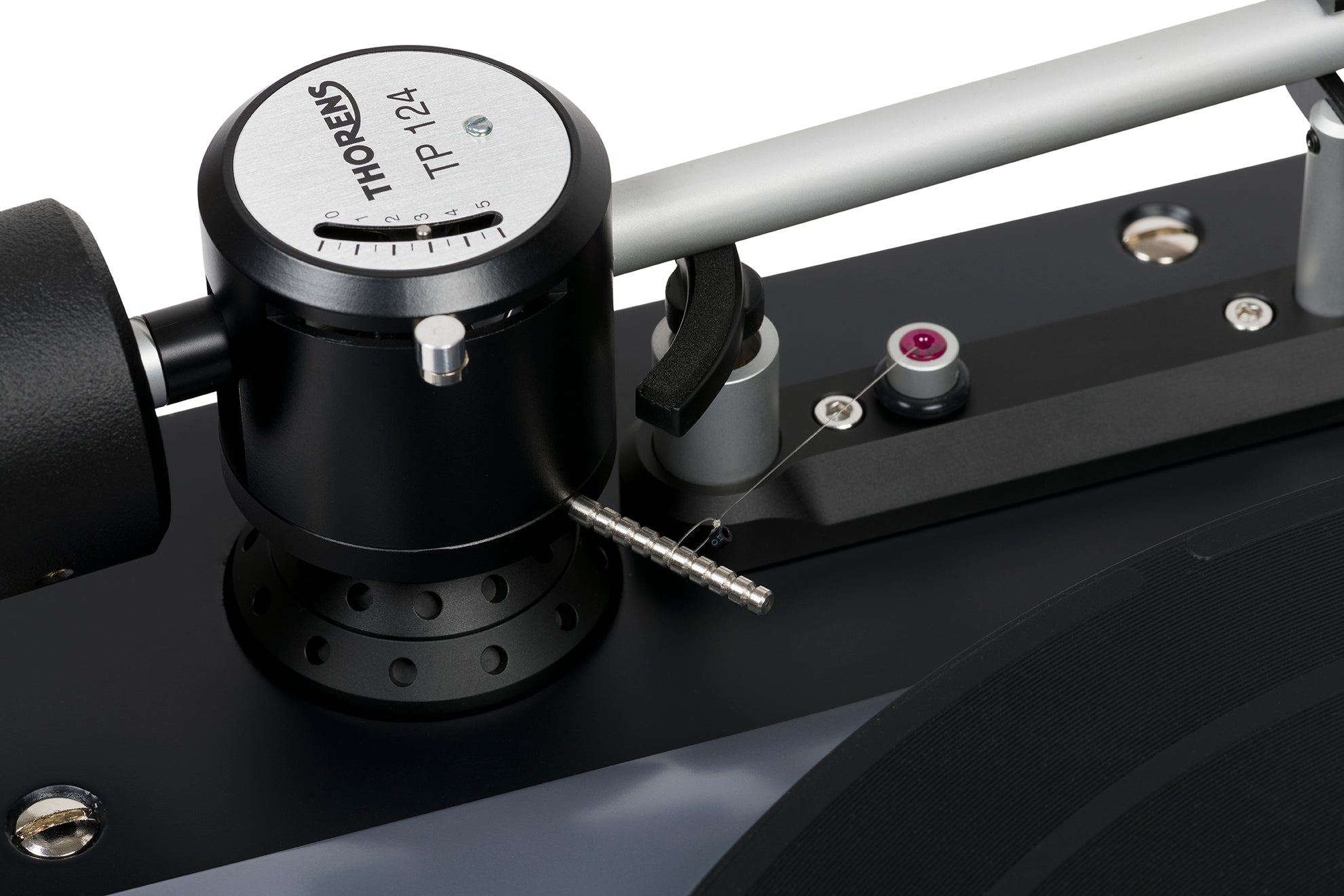

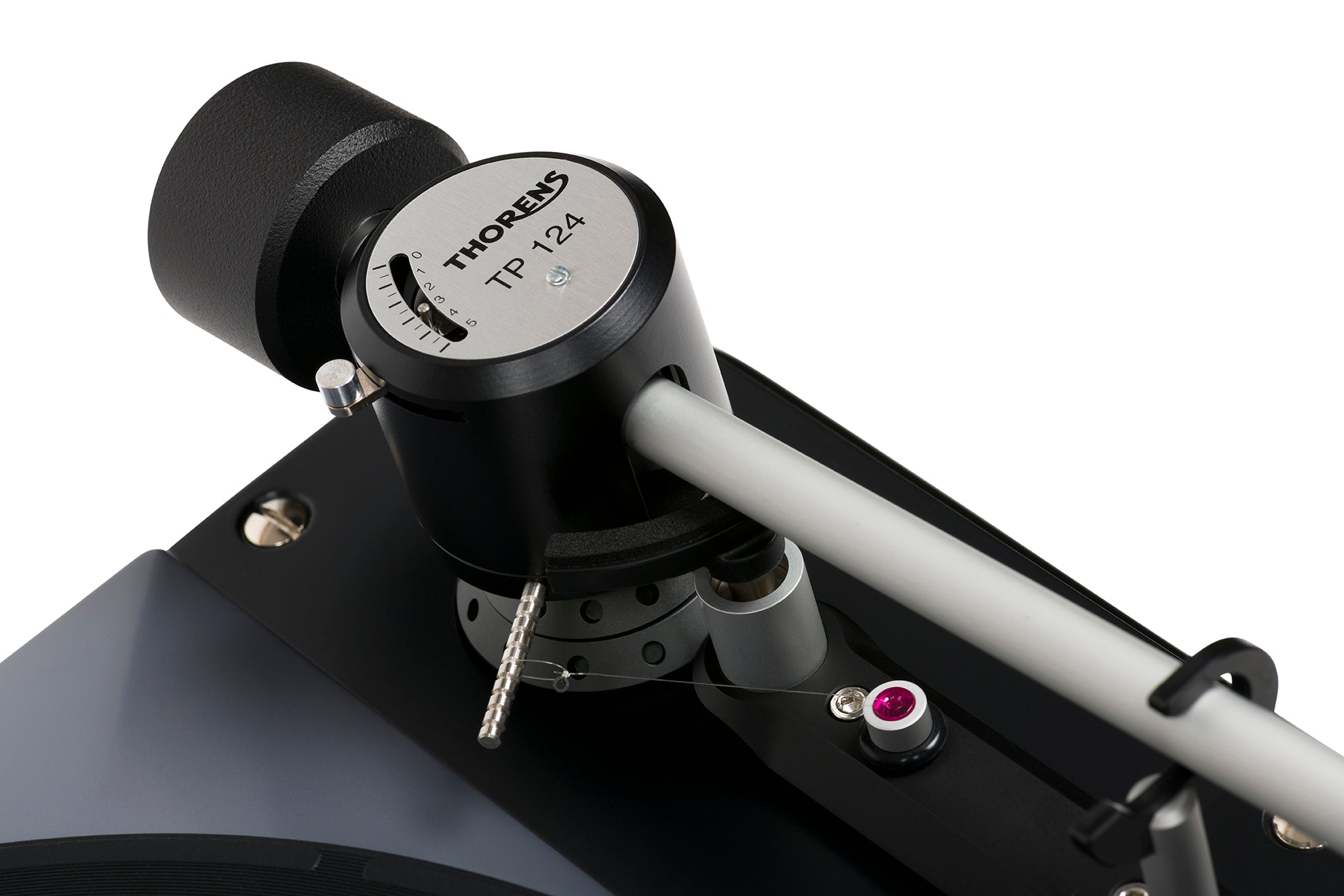

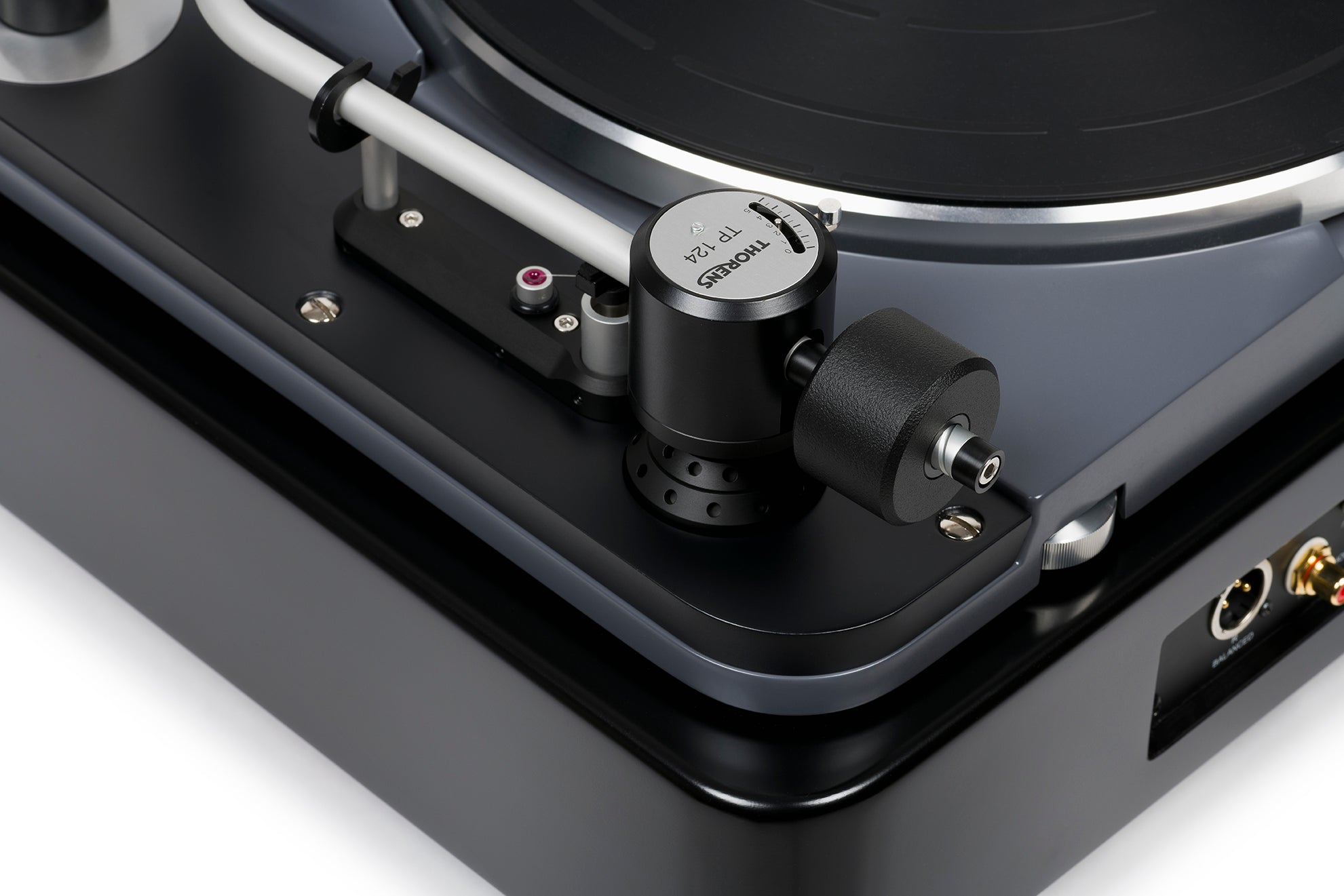

Also new is the tonearm TP 124. It can be precisely adjusted in all parameters to the cartridge of choice and features an innovative anti-skating solution with a ruby bearing and a patented electric tonearm lift to facilitate gentle placement and removal of the stylus.
In addition to the extensive adjustment options, the enclosed headshell provides a great deal of flexibility when it comes to selecting a cartridge. The TD 124 DD also comes with an additional, slightly heavier counterweight that matches the Thorens SPU TD 124 pickup, which is available separately. This is an updated version of another legendary piece of vinyl equipment, the famous Ortofon SPU. Thorens has created the SPU 124 together witclose h Ortofon for the discerning vinyl enthusiast looking for the extraordinary.

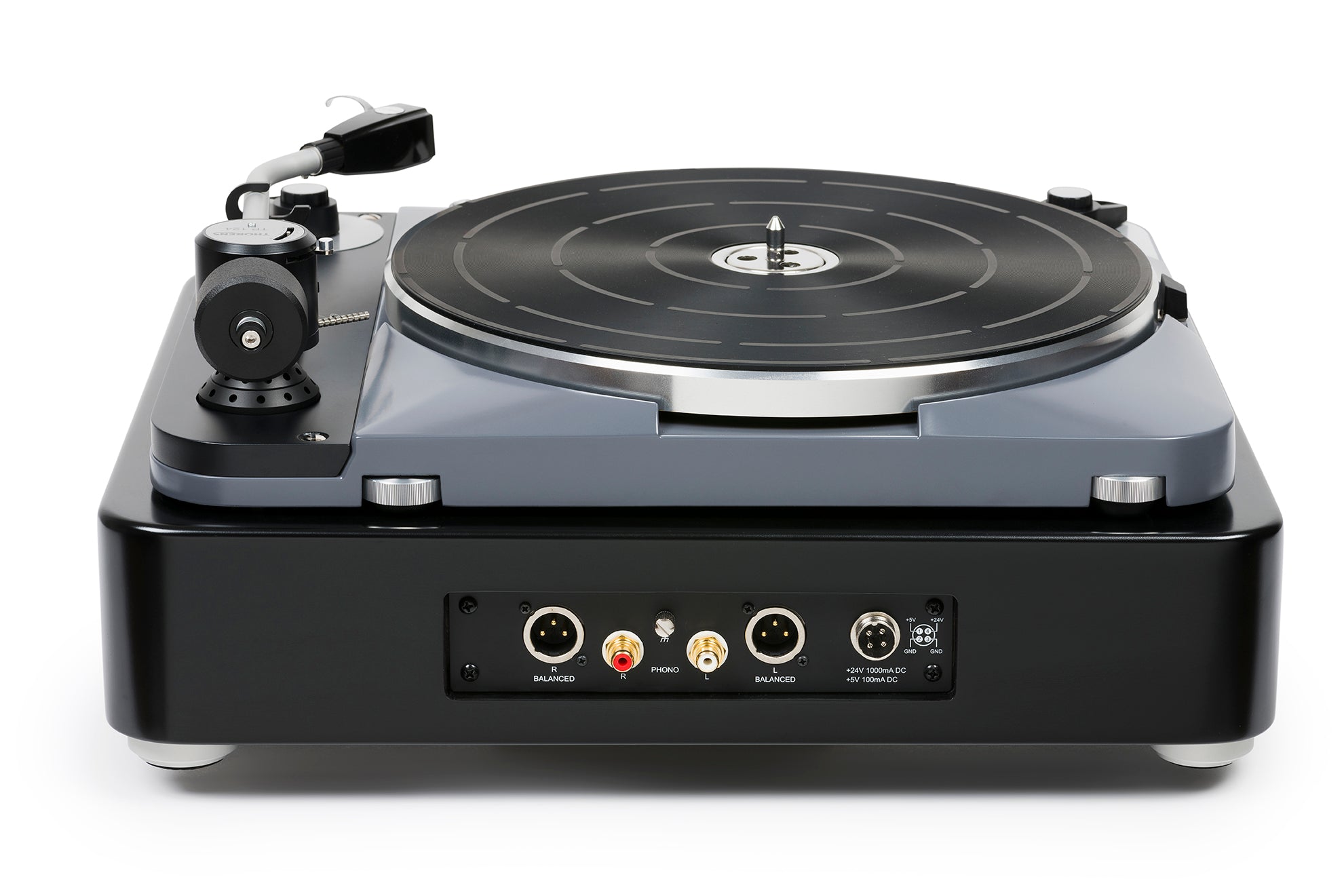

Thorens has payed attention to every detail when developing the new TD 124 DD to ensure that it meets the highest aspirations in sound performance. A high-quality external power supply unit ensures interference-free power delivery. In addition to the unbalanced outputs, balanced XLR connectors are also provided, which guarantee optimal signal transmission and thus the best possible sound when connecting the TD 124 DD to a high-end system with an appropriately equipped phono preamplifier.
Special Features
- High Precision Direct Drive Motor
- Electrical Lift
- TP124 Tonearm
- Removable Headshell (SME connector)
- Prepared for SPU Cartridge
- Balanced (XLR) and unbalanced (RCA) outputs

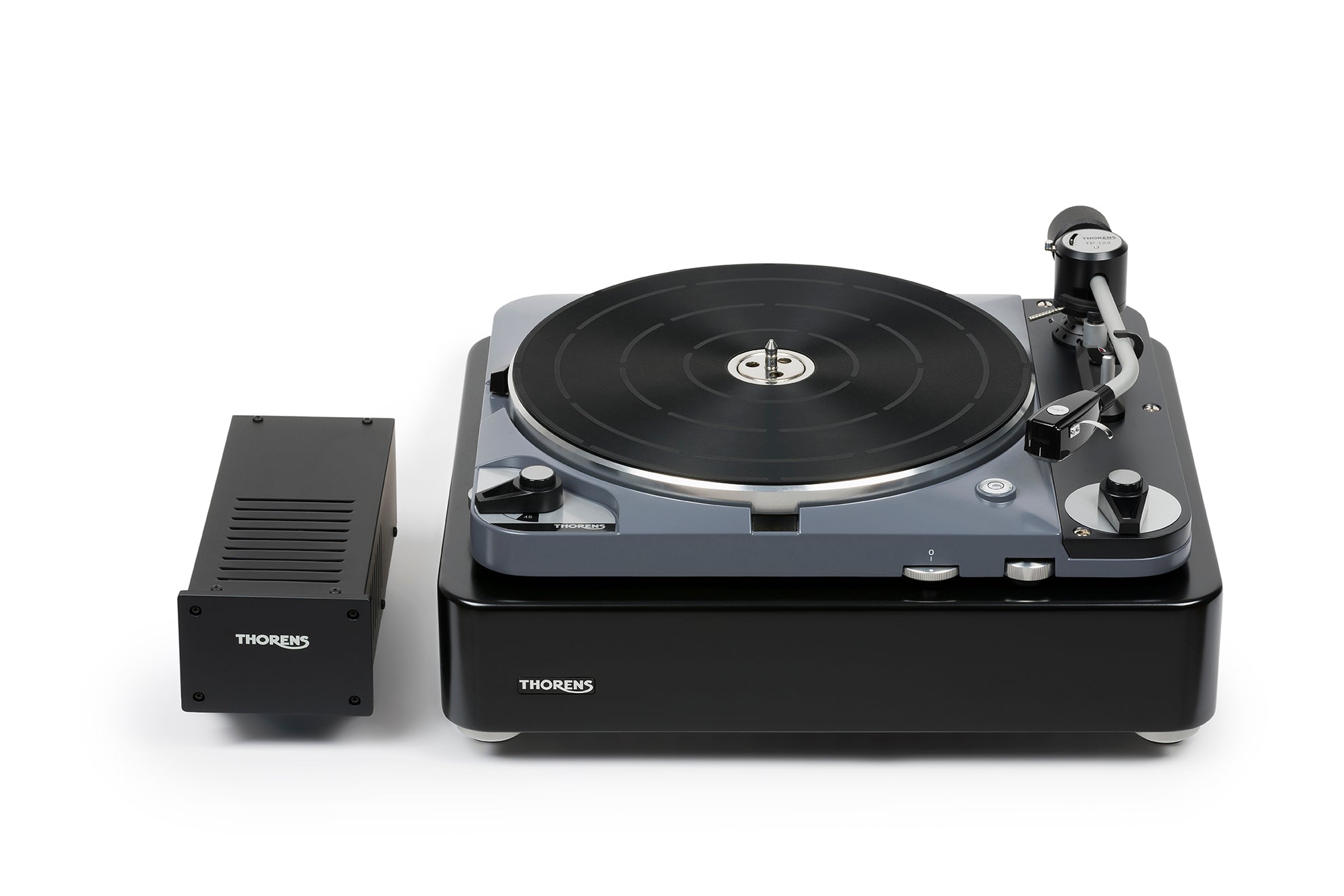

- External power supply
Specifications
Mains | 115 V / 230 V (AC) |
Drive System | Direct Drive |
Mains Frequency |
60/50 Hz |

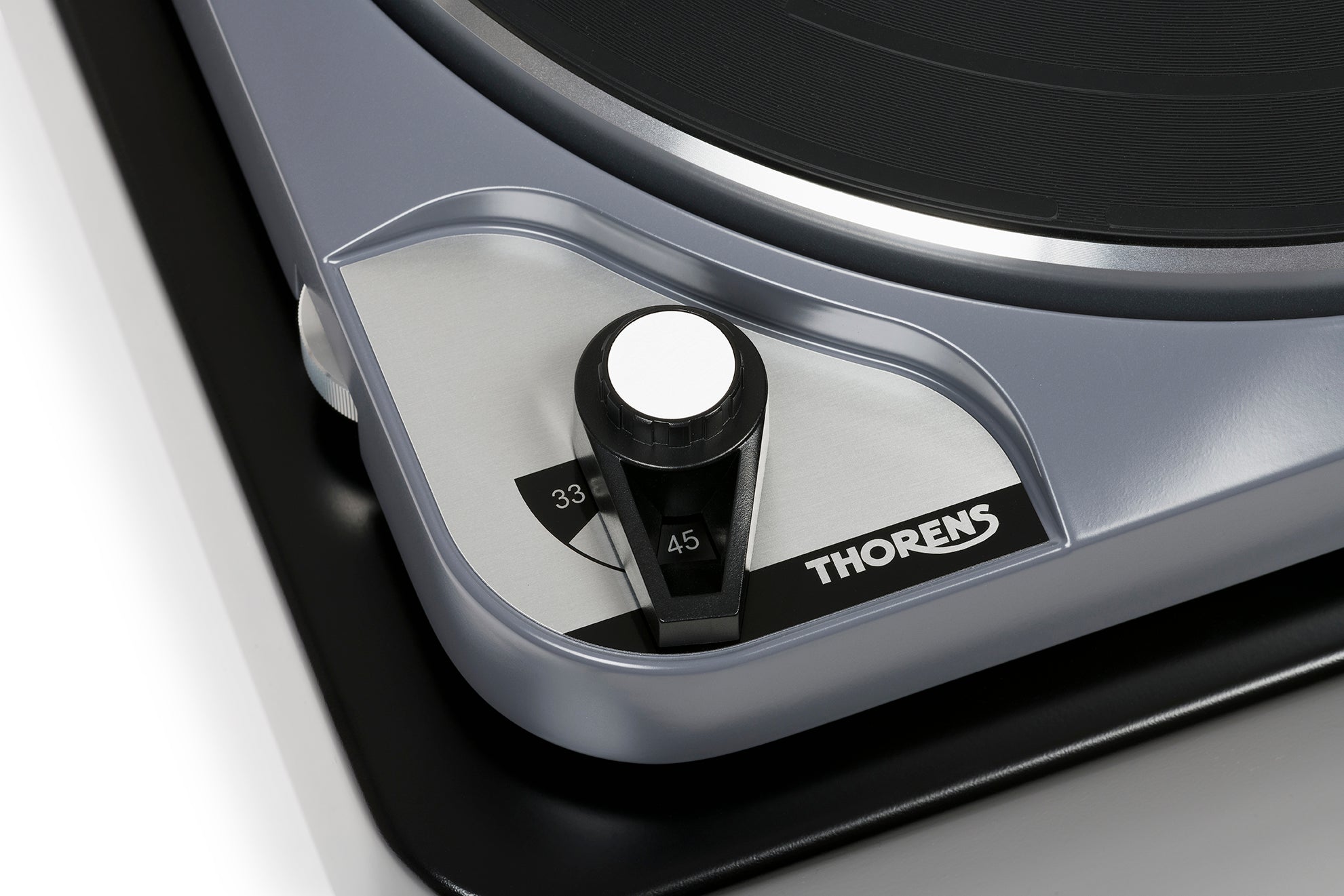

Speeds | 33,3 , 45 U / min RPM |

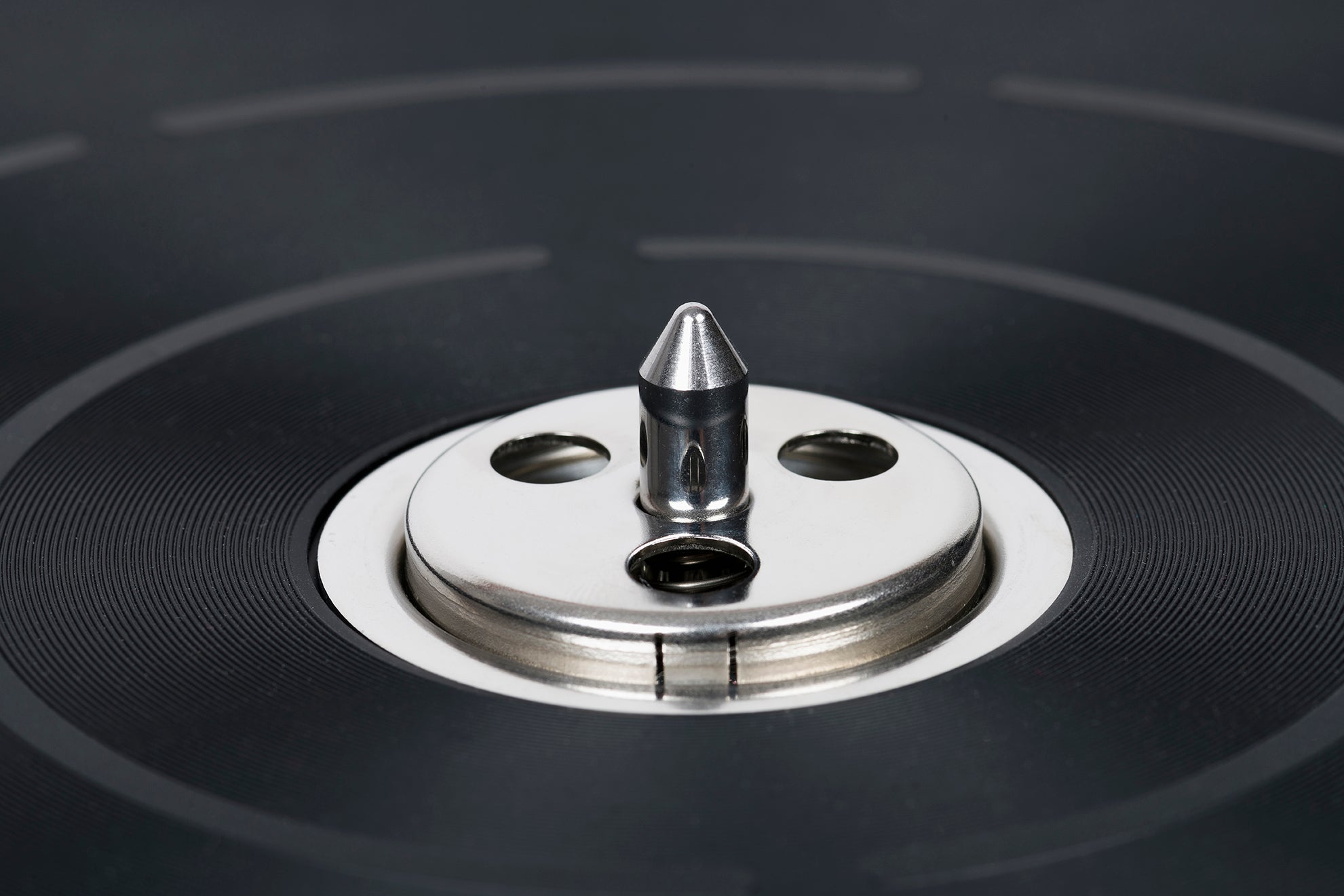

Platter | aluminum 3,5 kg |
Tonearm | Thorens TP 124 |
Cartridge | Optional Thorens - Ortofon SPU 124 |
Anti-Skating | With Ruby-Mounted Counterweight |
Outputs | RCA/Balanced XLR |
Power supply |
External 12V Power Supply |
Dimensions | 425 x 350 x 185 mm (W x H x D) |
Weight without Power Supply |
17 Kg |
Effective mass | 15 g |
Finish | Black |
What's included | external power supply, 2 tonearm counterweights, tool to adjust the tonearm, instruction manual |
