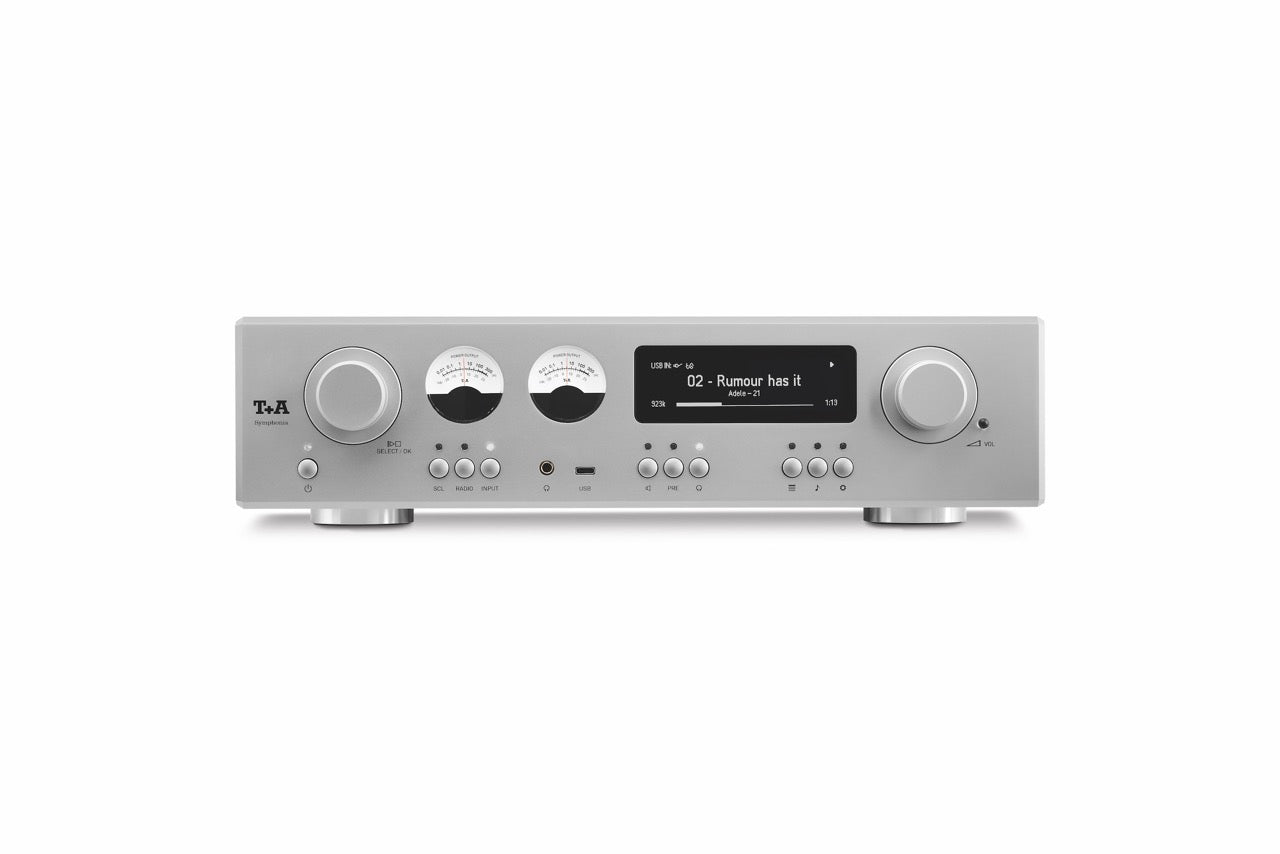

T+A Symphonia
We are pleased to introduce Symphonia - a unique streaming integrated amp under the motto "The Future of Retro".
Symphonia combines 40 years of engineering expertise with cutting-edge streaming technology and timeless aesthetics. Its design honors the heyday of hi-fi equipment while providing a modern listening experience - ideal for music enthusiasts who value classic beauty.
What makes Symphonia so special?
Uncompromising Sound Quality:
- Audiophile Streaming Architecture G3 for lossless music enjoyment.
- True-1Bit Converter for pristine DSD playback.
- 250 watts of T+A power - crystal-clear sound from the softest note to the loudest crescendo.
Design Meets Nostalgia:

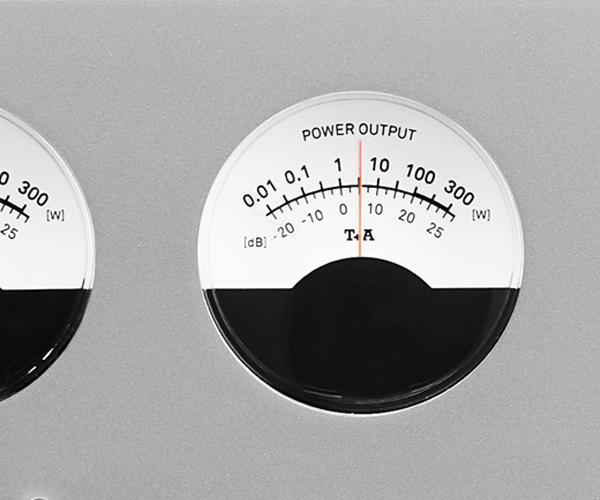

- Handcrafted VU meters and iconic front panels inspired by classic hi-fi equipment.
- Minimalist aluminum housing that suggests vintage while projecting a clearly modern influence.
Technology for the Future:
- Seamless integration of leading streaming services.
- Intuitive interface and user-friendly operation.
|
|
|
|
DESIGN & CONCEPT

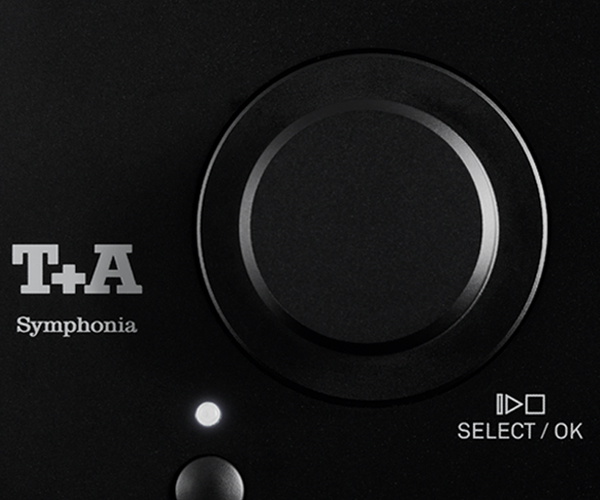

The Symphonia functions as a versatile "one-box system," combining exceptional sound quality and design in a compact form. It seamlessly integrates three devices into one, granting access to a wide range of music sources and utilizing unique converter architectures to convert digital bits and bytes into pure analog signals. These signals are then amplified and transmitted to loudspeakers and headphones with accuracy, as intended by the artist. Its design pays homage to the past while moving towards the future, featuring intuitive access to all functions through a few buttons and rotary/push controllers. The proportions reflect the brand's first electronics series from the 1980s, while the front and interface draw inspiration from their longest-running R Series and newly developed OS concept, respectively.
VERSATILE CONNECTIONS

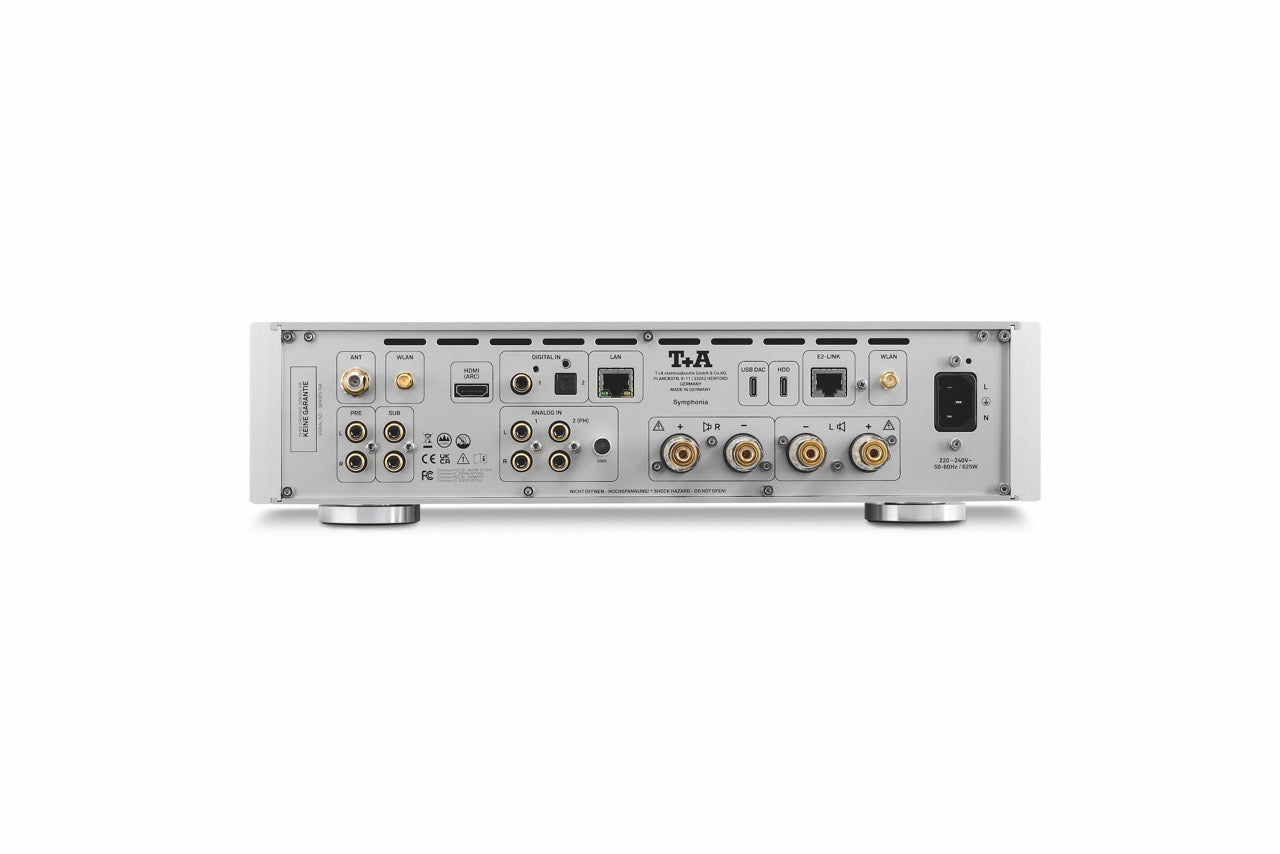

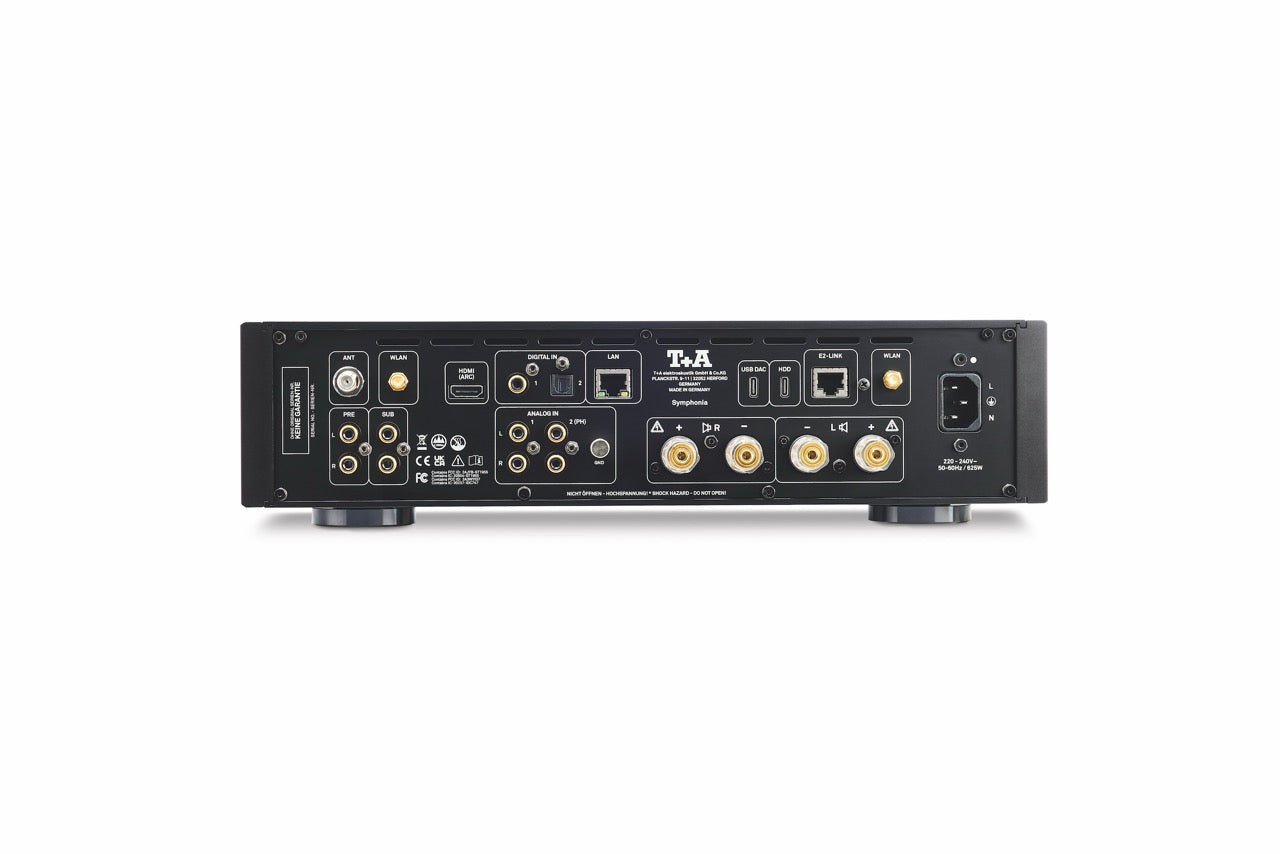

The Symphonia embodies its “Future of Retro” philosophy not only in design but also in its connectivity, supporting a wide range of inputs that bridge the gap between decades-old analog sources and modern digital media. Its input options include analog connections for classic sources, digital, HDMI, and USB interfaces for gaming consoles and televisions, and a built-in phono
stage for vinyl lovers.
With dedicated preamp and sub- woofer outputs, the Symphonia integrates effortlessly into existing systems or serves as the centerpiece of an entire musical environment.
AMPLIFIER TECHNOLOGY
Power should never come at the expense of control. Only when raw power is precisely guided by intelligent technology can it capture the depth, detail, and emotion behind every recording. That is why the Symphonia features custom-calibrated PURIFI EigentaktTM amplifiers, delivering up to 250 watts per channel without sacrificing precision. With a linear frequency response up to 60 kHz, an ultra-low distortion factor, and minimal intermodulation distortion, the amplifier section does only one thing: deliver the incoming signal to the outputs with absolute purity. Coloration, distortion, or alterations to the music are eliminated - what remains is the recording, exactly as it was created.
The Intelligent Safe Control (ISC) system continuously monitors key performance parameters multiple times per second, ensuring consistent stability even under the most demanding conditions.
CONVERTER TECHNOLOGY
At the core of the Symphonia lies a groundbreaking converter architecture, the result of our relentless pursuit of sonic excellence and deep expertise in digital technology. The T+A True-1Bit Converter processes DSD files natively and unaltered, eliminating the common but harmful conversion to PCM. The PCM Double Differential Converter, the latest evolution of a design refined over decades, reduces noise and distortion to an absolute minimum, delivering an unprecedented combination of dynamics and precision.
Despite our focus on pure sound reproduction, we believe in offering listeners the ability to personalize their experience. Our filter algorithms allow users to adjust the tonal balance to their individual preferences, ensuring a completely customized listening experience.
STREAMING TECHNOLOGY
The third generation of our Audiophile Streaming Architecture (ASA G3) transforms the Symphonia into a central hub within the Internet of Things. Featuring modern sources, intuitive operation, and T+A’s signature sound quality, ASA G3 reflects our ambition to make high-end audio effortless and accessible.
The Symphonia offers built-in access to streaming services such as Deezer, Qobuz, and Tidal, while Bluetooth and Connect services such as AirPlay and Tidal Connect allow seamless playback from mobile devices. Playback is done at the highest possible sample rate up to high resolution 384/32 (HD) PCM and native DSD 256, respectively.
SPECIFICATIONS
Pre-amplifier:
| Frequency response +0 /-3dB | 0.5 Hz - 300 kHz |
| Signal / noise ratio | 105 / 109 dB |
| THD | Intermodulation | Channel separation | < 0.002 % | < 0.002 % | > 90 dB |
| Nominal input sensitivity | |
| High level input unbalanced (RCA) | 250 mVeff ... 4 Veff / 24 kOhm |
| High level input unbalanced (RCA) | Phono | 250 mVeff ... 4 Veff / 47 kOhm / Phono 5 mV |
| Analogue pre-amplifier output (RCA) | nom 1 Veff, max 9.5 Veff / 47 Ohm |
| Analogue pre-amplifier output (Subwoofer) | nom 1.6 Veff, max. 9.5 Veff / 47 Ohm / TP 240 Hz |
Power amplifier:
| Output power (RMS) per channel | 250 watts @ 4 ohms 125 watts @ 8 ohms |
| Frequency response +0 /-3dB | 1 Hz - 60 kHz |
| Damping factor | > 800 |
| Headphone output | 4.4 mm Pentaconn (6 Ohms) |
Connections:
| Digital inputs |
2 x S/P-DIF: 1 x Standard Coax, 1 x optical TOS-Link (32...192 kHz / 16-24 Bit), DSD64
|
| Analogue inputs |
1 x unbalanced Cinch
|
D/A-Converter:
|
PCM: Double-Differential-Converter with two 32-Bit Sigma-Delta D/A Converters per
|
|
| Upsampling |
T+A-Signalprocessor – synchronous upsampling with 4 selectable oversampling algorithms
|
| Analogue output filter | Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut off frequency |
| Frequency response |
PCM 44.1 kSps 2 Hz - 20 kHz
|
Streaming Client:
| Formats | MP3, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC, DFF, DSF |
| PCM 32 … 384 kHz, 16/24 Bit; MP3 bis 320 kBit DSD64; DSD128; DSD256 |
|
| Supported media servers | UPnP 1.1, UPnP AV and DLNA kompatible Server, Microsoft Windows Media Connect Server (WMDRM10, DLNA compatible servers) |
| Supported streaming services | airable radio and podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, highresaudio, Tidal connect, Spotify connect, Apple AirPlay2, Plays with Audirvana, Roon |
| Features | Auto Network Config., Internet Radio Station database (automatic updates) |
| Interfaces |
LAN:
|
Tuner (FM):
| Frequency range | FM Radio 87.5 – 108 MHz (Europa / US); 76 – 90 MHz (Japanese version) |
| Sensitivity Mono | (26dB S/N) 0.9 μV, Stereo (46 dB S/N) 40 μV |
| Overload margin | 103 dB μV |
| Stereo channel separation | 50 dB |
| RDS Functions | Stationname, Radio text |
Tuner (DAB):
| Reception standard | DAB, DAB+ |
| Frequency band | 168 – 240 MHz (Band III) |
| Overload margin | 103 dB μV |
| Sensitivity (BER = 10 – 4) | 2.5 μV |
Bluetooth:
| Supported audio formats | A2DP (Audio), AVRCP 1.4 (Control) / aptX ® HD, SBC, AAC |
| Frequency band | 2.4 GHz: 2042Mhz ... 2480Mhz Max. transmission power <10 dBm (EIRP) |
| RC protocol | AVRCP |
Mains:
| Mains voltage | 220-240 V, 50-60 Hz / 110-120 V, 50-60 Hz (see back panel of the Symphonia) |
| Normal operation (max.) | 800 Watts |
| Standby (ECO) | < 0.5 W. |
| Dimensions (H x W x D) | 10 x 38 x 34 cm / 3.9 x 15 x 13.4 inch |
| Weight | 6.2 kg / 13.7 lbs |
| Accessories | Power cord, remote control SRC 2, 2x WLAN antenna, FM antenna |
| Finishes | Silver anodised aluminium (43), black anodised aluminium (42) |
