STAX SRM-700T
STAX SRM-700T
The newly designed SRM-700T is a hybrid electrostatic headphone driver. Inspired by the flagship model SRM-T8000, the 700T uses solid-state FET as a driver stage and vacuum tube as the output stage.
The first stage is a custom-made low-noise dual FET while the second stage is clear and high slew-rate vacuum tube 6SN7. The tube output offers warm and spacious music reproduction.
6SN7 realizes a highly transparent sound
Non-inductive winding resistors with the least inductance
Hand selected matching FET
High-definition film capacitors are used

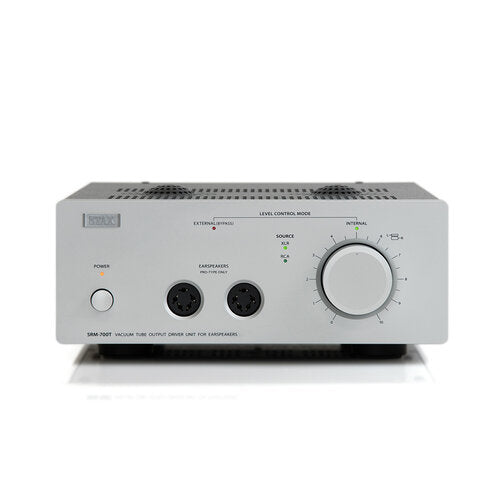

Bypass volume control switch
Volume control is EMI shielded

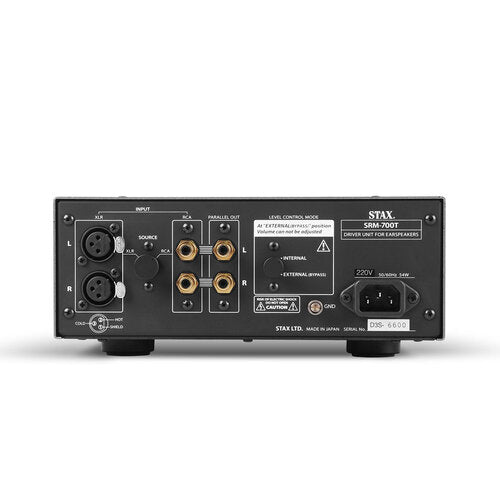

Switchable RCA and XLR inputs. RCA parallel out.
The newly developed large-sized aluminum insulator combined with new vibration-proof material and high frictional coefficient (grip power) have been employed.
Specifications
-
Type: FET input + vacuum tube output hybrid DC amplification driver unit
-
Vacuum tube: 6SN7 x2
-
Frequency response: DC – 100kHz (with one SR-009S)
-
Gain: 60dB
-
Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
-
Input impedance: 50kΩ (RCA), 50kΩx 2 (XLR)
-
Maximum output voltage: 340Vrms (1kHz)
-
Bias voltage: PRO 580V
-
Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)
-
Input terminal: RCA x 1, XLR x 1
-
Output: RCA parallel output terminal
-
Power consumption: 54W
-
Dimension: 240 W x 103 H x 393 D mm (maximum protruding portion included)
-
Weight: 5.7kg
