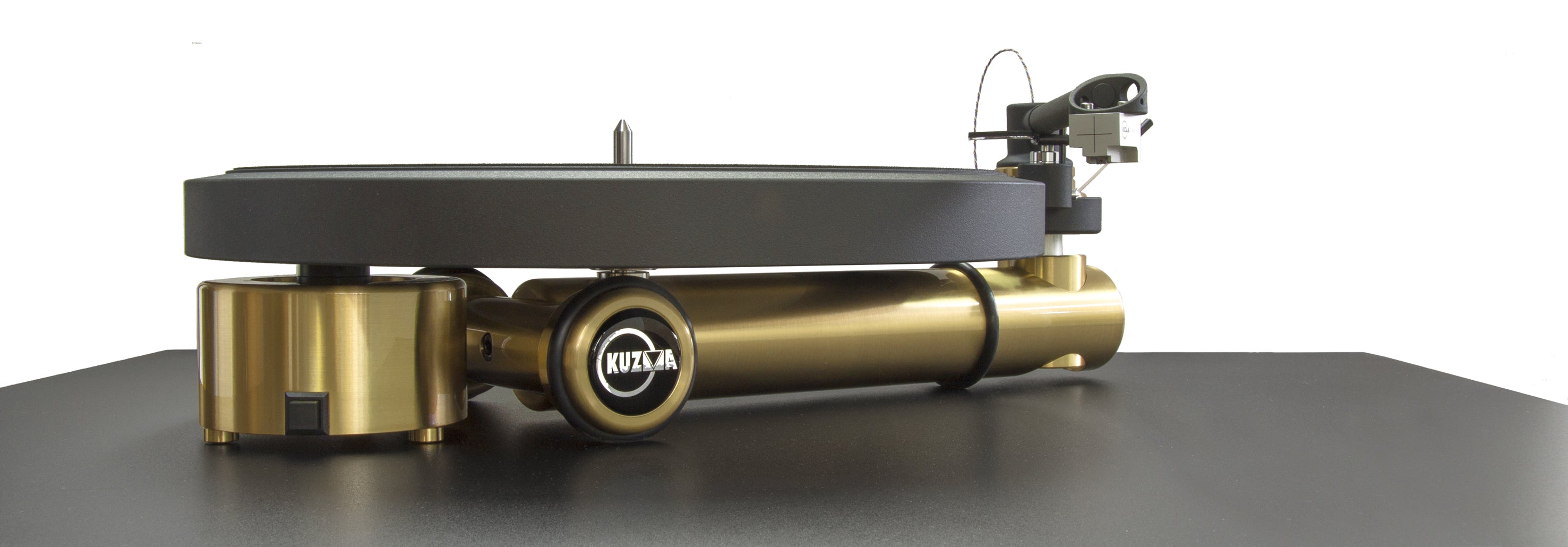

Kuzma Stabi S Turntable

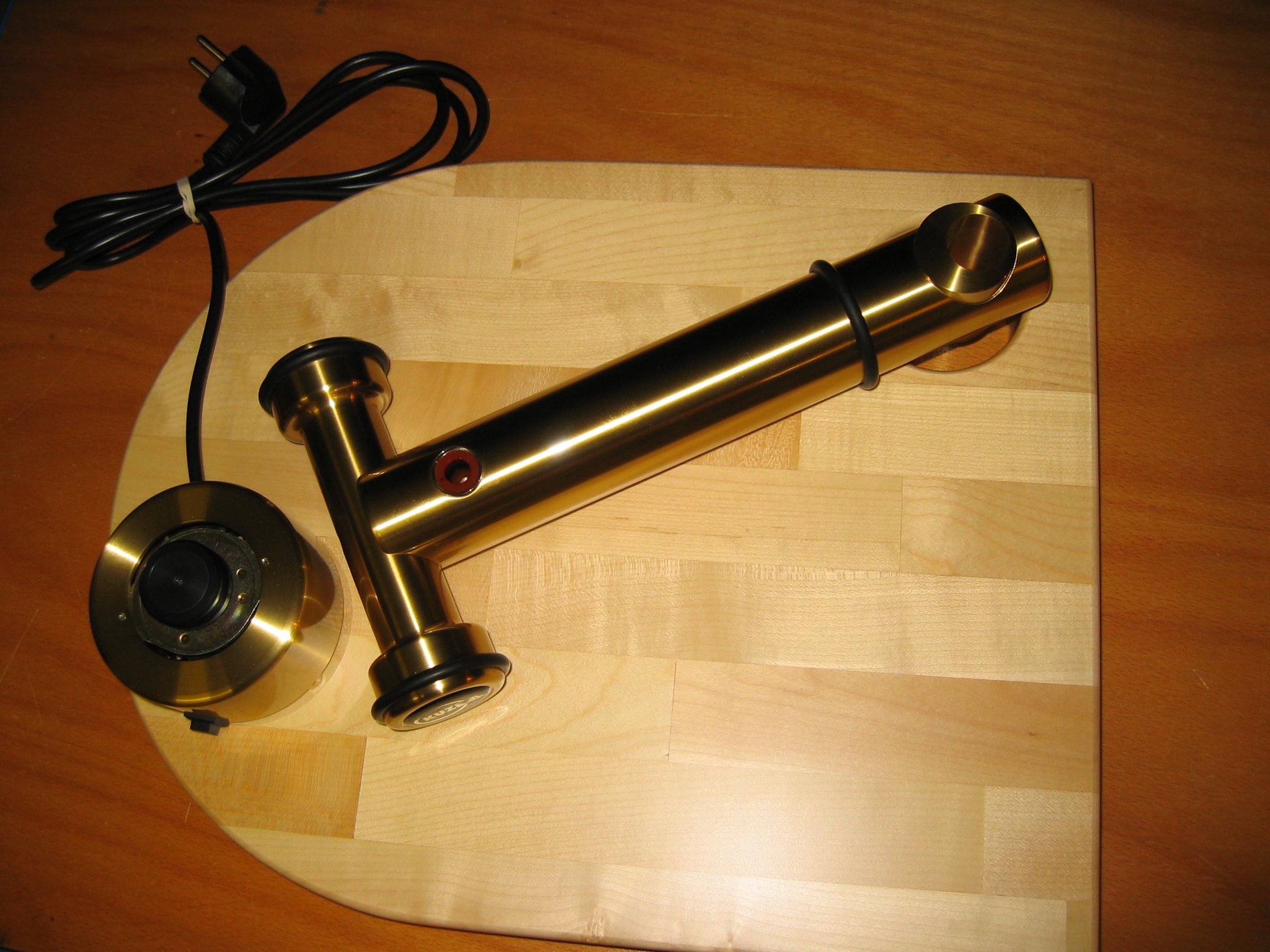

Stabi S is our smallest turntable with a design approach normally found only in more expensive models. Its unique shape and construction of solid brass rods, provide an extremely rigid connection to platter, bearing and tonearm support. There is no flat plate to resonate and transmit vibrations, only solid brass rods 50mm in diameter. A second brass rod provides stability and the two are clamped together in a T shape. The motor is housed independently in its own bras tower which dampens vibration of the motor itself. A ground, flat belt provides drive from the motor pulley to the subplatter.

The bearing is of highly polished, fine grain carbon steel with a one point contact, while the bearing sleeve is of a resin/textile material which has excellent damping, non-resonant properties.

With a mat on top and rubber damping insert underneath, the sold aluminium platter provides a stable non-resonant platform for records. Since 2018  is supplied thicker platter- 30 mm.
An acrylic cover protects platter and tonearm while reflecting the turntable’s original shape. A 45 rpm adaptor is provided and is simply slipped over the 33 rpm pulley. The turntable can accommodate various tonearms by the use of different pre- cut brass plates and it allows for VTA adjustment on any tonearm mounted.

The whole turntable is supported by an optional high density plywood plate.

Introduced: 1998

Specifications

Mass	13 Kg
Platter mass	4,3 Kg ( since 2018 is supplied thicker platter- 30 mm)
Platter material	Aluminium
Bearing type	Pointed shaft with resin/textile material
Shaft diameter	10 mm
Drive	Flat rubber belt
Chassis/Levelling	Brass/ No
Turntable levelling	No
Motors	1 pc AC
External power supply	optional
Speeds	33,45 rpm
Armboard	optional ( Kuzma arms fit directly)
VTA adjustment	Yes
No. of tonearms	1 (+1 optional)
Max tonearm’s length	10” ( optional 12”)
Suspended	No
Dimensions	400x300x170 mm
Finishes	brass or black ( RAL finisih by order)
Clamp	Optional
Mat	Yes
Lid	Yes
Accessories	Oil, Allen keys
Options	SD- second arm kit,12” kit, extra platter kit(2.6 kg only for older 20mm thicker platter),
Options	Various armboards, outboard power supply,
Options	Brass clamp ( 370 g), supporting platforms
