IsoTek Evo3 Initium
EVO3 Initium
EVO3 Initium is IsoTek’s new entry level power cable designed to offer high quality performance at an extremely fair price. Initium is a must for replacing all of your free standard black plastic power leads which have been designed down to a price not up to a quality.

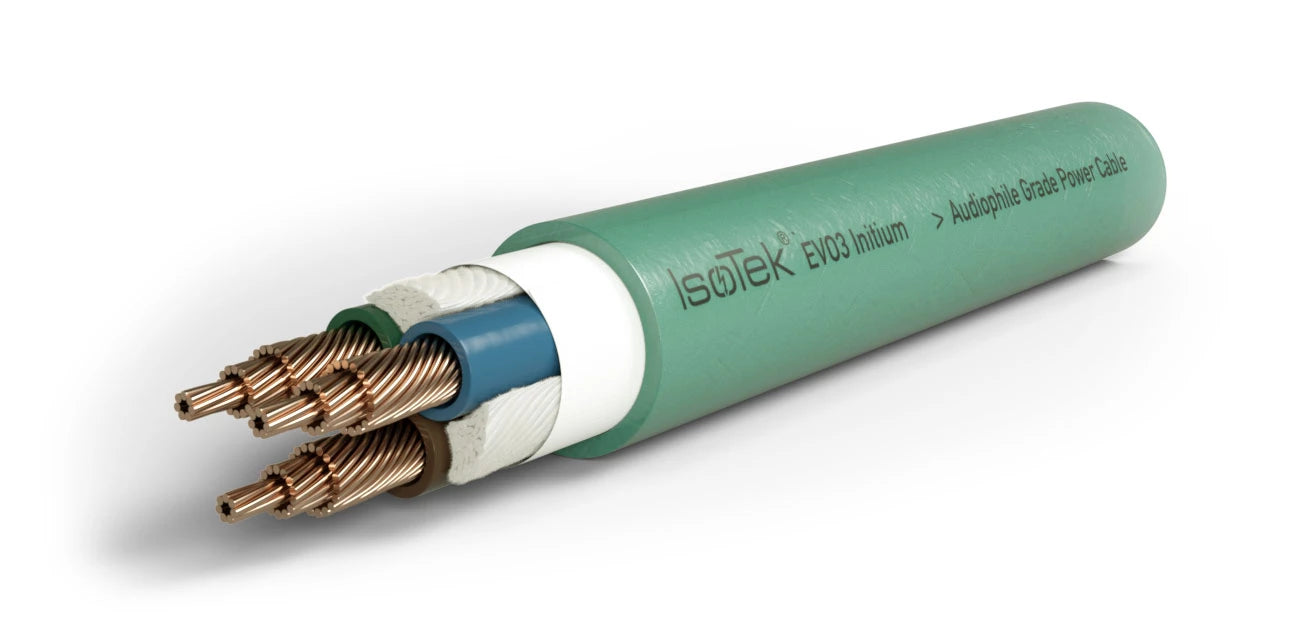

CONSTRUCTION: The conductors are in a parallel construction with a slight rotational twist. This established technique remains the first line of defence against RFI and EMI rejection.
A) Conductors: 99.9999% OFC conductors offer an exceptional level of purity with enhanced conductivity. They are less likely to fracture or degrade over time.
B) Dielectric: PE dielectric (insulation) is chemically inert and has a very low dielectric constant over a wide frequency range. PE possesses a very high degree of stress crack resistance and a low coefficient of friction making it an exceptional dielectric. PE is a good choice for safety in both temperature and electrical insulation.
C) Filler: Cotton filler has been used to give the cable internal strength and reduce microphony. Cotton also possesses excellent dielectric properties, the best of a solid material.
D) Wrap: A paper wrap is used to secure the construction prior to the application of a flexible PVC jacket. The addition of the paper and cotton form a buffer with the PVC so as to maintain exceptional dielectric properties.
E) Jacket: PVC is used as the outer jacket to give a high degree of flexibility and mechanical strength.

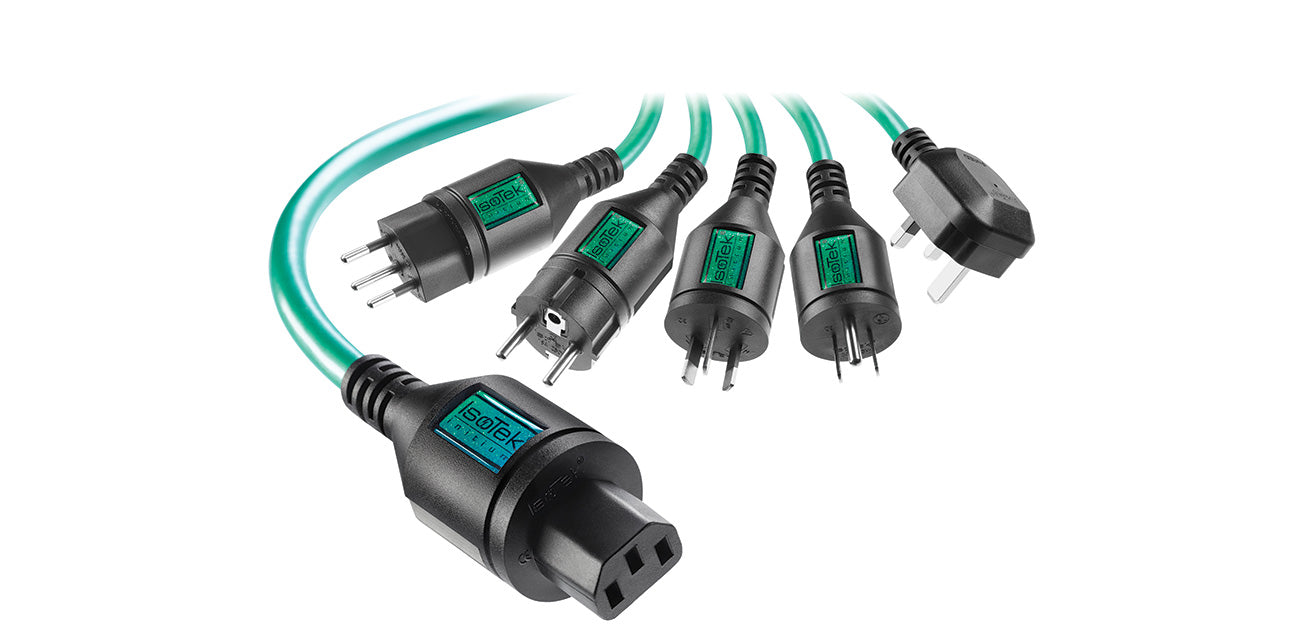

TERMINATION: Initium cable is terminated using IsoTek’s bespoke Audiophile grade moulded connectors of solid OFC. These offer good performance qualities.
Specifications
CONDUCTOR SIZE | 3 x 2.0sqmm |
CONDUCTOR MATERIAL | 99.9999% Oxygen Free Copper |
DIELECTRIC | Polyethylen (PE) |
DIELECTRIC CONSTANCE | 2.25 |
FILLER | Cotton |
PVC BARRIER | Paper wrap |
OUTER JACKET | High flexibility PVC |
CABLE POWER RATING | 16 Amp |
CABLE LENGTH | 1.5m standard (no custom length) |
OUTER DIAMETER | 10mm |
TERMINATION | Nickel plated audiophile-grade connectors |
