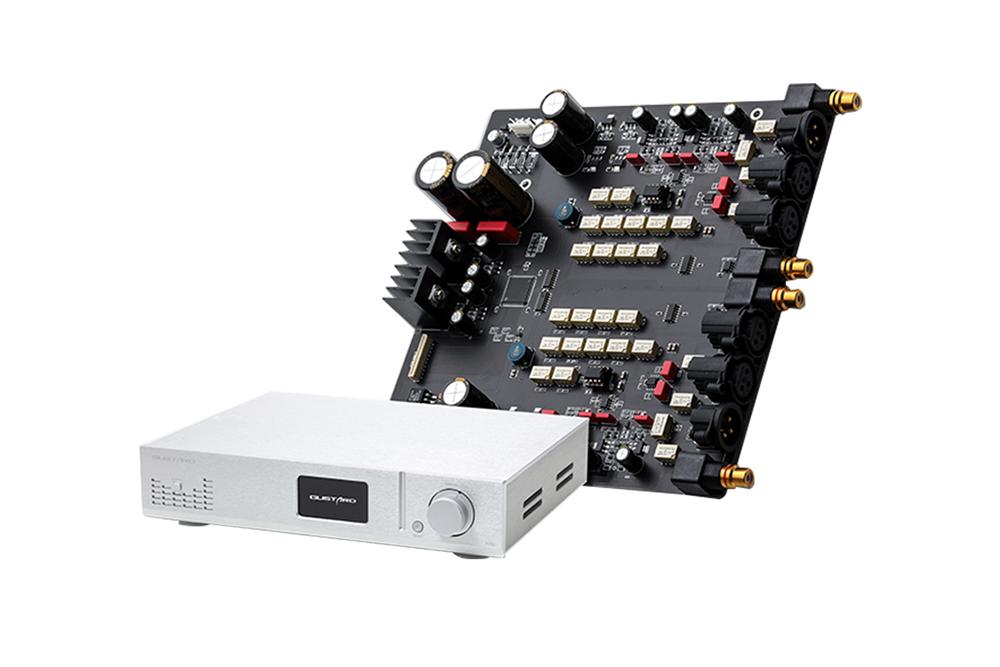

Gustard P26 Preamplifier

***The P26 preamp uses the new remote control, please press and hold the AMP button for more than 3 seconds to enter the P26 preamp operation mode.

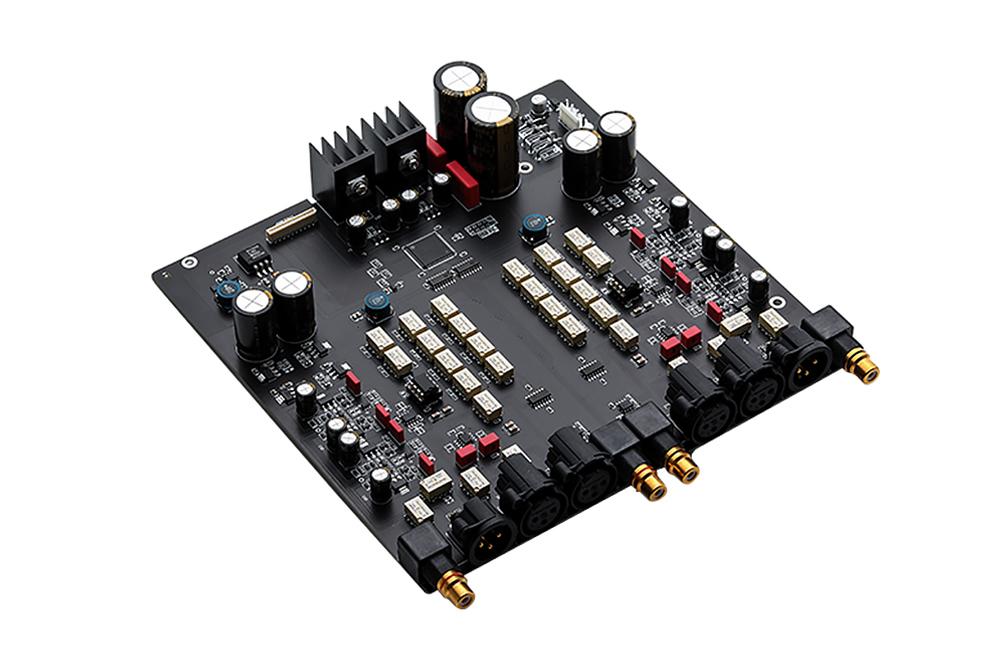

• Class A fully balanced design, the left and right channels are divided into regions, and the left and right separation is good;Native full balance architecture, from input to volume control to amplifier circuit, without any conversion, complete four-way architecture;
• Op amp + discrete hybrid architecture, which ensures circuit consistency and no lack of adjustability. Two in-line LM49860 dual op amps can be replaced to increase playability
• Discrete diamond-shaped differential output stage to easily drive various back-end loads
• The volume of matrix relay is used to effectively ensure that the volume of 4 channels is consistent and unbiased
• Adjustable input stage gain and output stage gain, easy to match different front and rear ends;
• It is with swappable opamps
• Large OLED display + full-featured remote control operation, user-friendly design
• Customized 50W audio dedicated toroidal transformer
• All-aluminum alloy case, available in all silver and all black colors;


Product parameters:

Analog input (3 groups):

• RCA: input impedance 47k input sensitivity 2 ~ 10V rms
• XLR1 & XLR 2: input impedance 47k maximum input amplitude + 28dBu (19V rms) @ IGAIN = 0dB

Analog output (2 groups):

• Frequency response: 20-20kHz /+-0.1dB
• Signal to noise ratio: 130dB
• Channel Crosstalk: -130dB @ 20-20kHz
• THD + N: <0.00035% 20-22kHzBW @ 18dBu IN & 18dBu OUT
• IMD (SMPTE): <0.0006% @ 18dBu IN & 18dBu OUT
• Maximum undistorted output level: RCA output: 9.5V rms XLR output: + 28dBu (19V rms)
• RCA output impedance: 100Ω XLR output impedance: 100Ω

Other parameters:

• Machine size: width 330 * depth 260 * height 65MM (excluding protruding parts);
• Packing size: length 420 * width 360 * height 175MM;
• Packing weight: 6.5KG;
• AC power: AC 115V / 230V 50 / 60Hz (manual adjustment);
• Overall power consumption: <20W;
