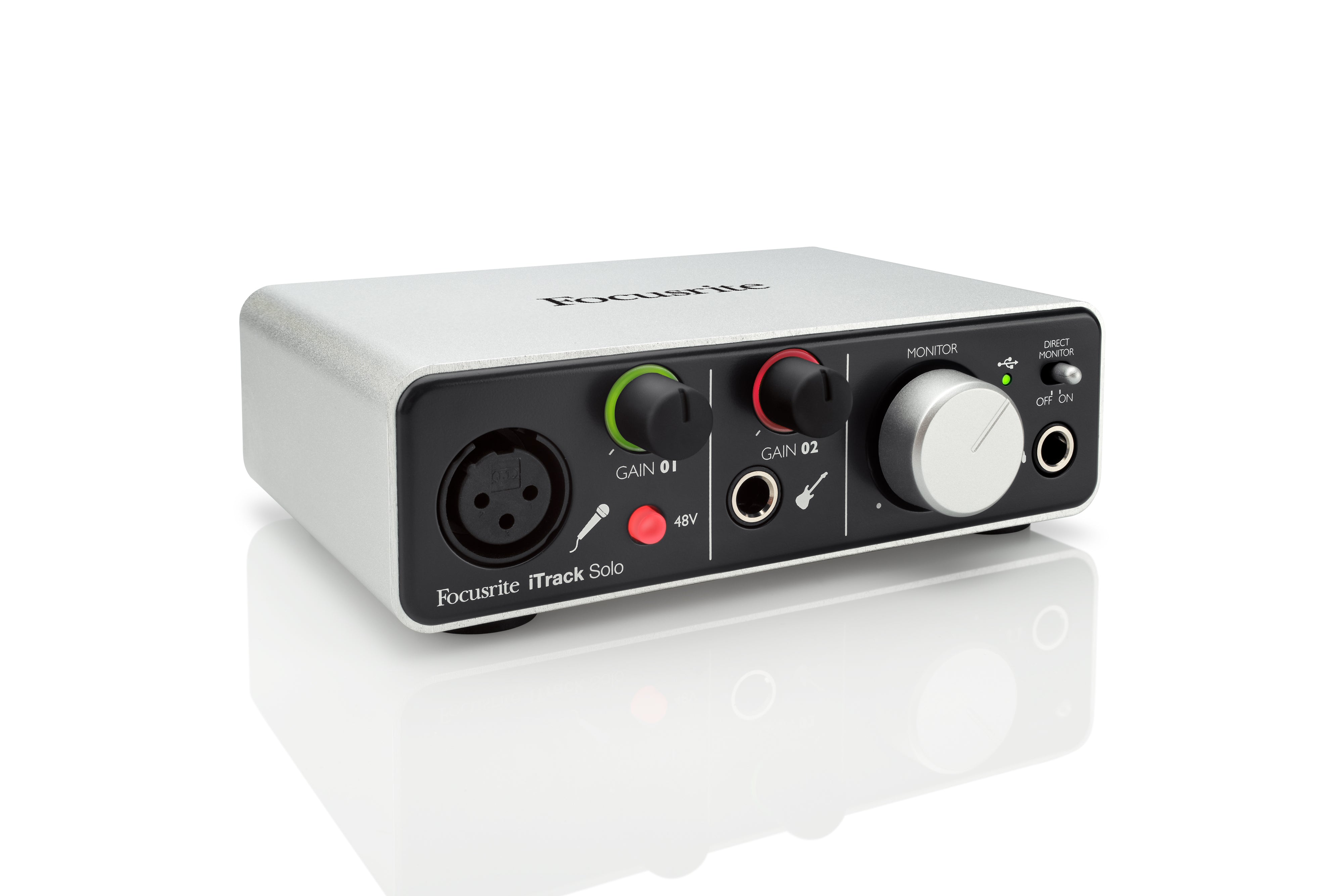

Focusrite iTrack Solo
SIMPLE PROFESSIONAL RECORDING ON MAC, PC AND IPAD
Record However You Want
Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.
PLUG YOUR INSTRUMENT STRAIGHT IN
Start recording the moment inspiration strikes, by plugging any instrument or mic straight in.
Polish Your Sound
Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.
Make Some Noise
iTrack Solo isn’t just for recording. Connect your speakers, crank up the volume and totally immerse yourself in the sound of your music, apps, video games, movies – or anything else.
Maintain Your Feng Shui
Fewer cables means less clutter. You only need to plug iTrack Solo into the mains if you’re using it with iPad. Otherwise, your USB connection will power it.
IDEAL FOR IPAD
Certified by Apple and compatible with any Lightning™ iPad: iPad Pro, iPad mini, iPad mini with Retina Display, iPad (4th gen and up) and iPad Air.
YOU ALREADY KNOW HOW
You don't need to learn anything new. Record your songs directly into Garageband, Cubasis, Auria and many other apps.
THE SOUND OF SUCCESS
Capture and play back your sound with pristine quality, using the very latest in digital audio technology.
LOOK AS GOOD AS IT SOUNDS
The gorgeous bead-blasted aluminium case is tough enough to throw in your bag and take with you anywhere.
TECHNICAL SPECIFICATIONS
FRONT PANEL
1 microphone input - XLR
1 Instrument input ¼’ unbalanced
2 Gain knobs
2 Gain halo signal indicators
48V Phantom power switch
Direct monitor switch
Large monitor level dial (controls headphone and line level outputs)
USB Connection LED indicator
Headphone output ¼’ TRS Jack
REAR PANEL
2 unbalanced monitor outputs - RCA Phono
DEVICE LINK port (to connect iTrack Solo to iPad)
USB 2.0 Port
Kensington Lock slot
INCLUDED SOFTWARE
Ableton Live Lite 9 - professional music making software to use your iTrack Solo with a Mac or PC.
Focusrite Scarlett plug-in suite - collection of software plug-ins bringing effects to your music software (like Ableton Live for example).
MIC ANALOGUE INPUT PERFORMANCE
- Frequency Response
- 20Hz - 20kHz +/- 0.2 dB
- THD+N
- < 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter)
- Equivalent Input Noise (EIN)
- < -120dB: measured at minimum gain with, -1 dBFS (20Hz/22kHz bandpass filter)
- Gain Range
- +10dB to +55dB
- Max Input Level
- +4dBu
INSTRUMENT
- Frequency Response
- 20Hz - 20kHz +/- 0.2dB
- THD+N
- 0.003% (measured with -1dBFS input and 22Hz/22kHz bandpass filter)
- Noise
- -87dBu (22Hz/22kHz bandpass filter)
- Gain Range
- -10dB to +55dB
- Max Input Level
- +2dBu
ANALOGUE OUTPUT PERFORMANCE
- Nominal Output Level
- 0dBFS = 10dBu, unbalanced
- Frequency Response
- 20Hz - 20kHz +/- 0.2dB
- THD+N
- < 0.001% (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted)
DIGITAL PERFORMANCE
- Clock sources
- Internal clock only
- A-D Dynamic Range
- 105dB 'A-weighted' (all inputs). Converter chipset A-D dynamic range 114dB
- D-A Dynamic Range
- 105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB
- Supported sample rates
- 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz - Mac and PC
44.1 KHz, 48 KHz - iPad
CROSSTALK
- Input to Input
- Better than 90dB
- Output to Output
- Better than 90dB
- Input to Output
- Better than 85dB
INPUT METERING
Ring LED lit Green Signal present (-24 dBFS)
Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second
WEIGHT AND DIMENSIONS
Height 45 mm / 1.77'
Width 150 mm / 6'
Depth 100 mm / 4'
Weight 500 g / 1 lb
IN THE BOX
iTrack Solo
1.2m USB cable
1.2m "DEVICE LINK" cable (to connect to a Lightning iPad)
Getting started guide
Registration card
Download card for Ableton Live Lite / Scarlett Plug-in Suite
USB power supply (US only)
COMPATIBLE IPADS
iTrack Solo Lightning: Any iPad with Lightning connector.
Standard iTrack Solo: iPad (1st gen), iPad (2nd gen) and iPad (3rd gen)
