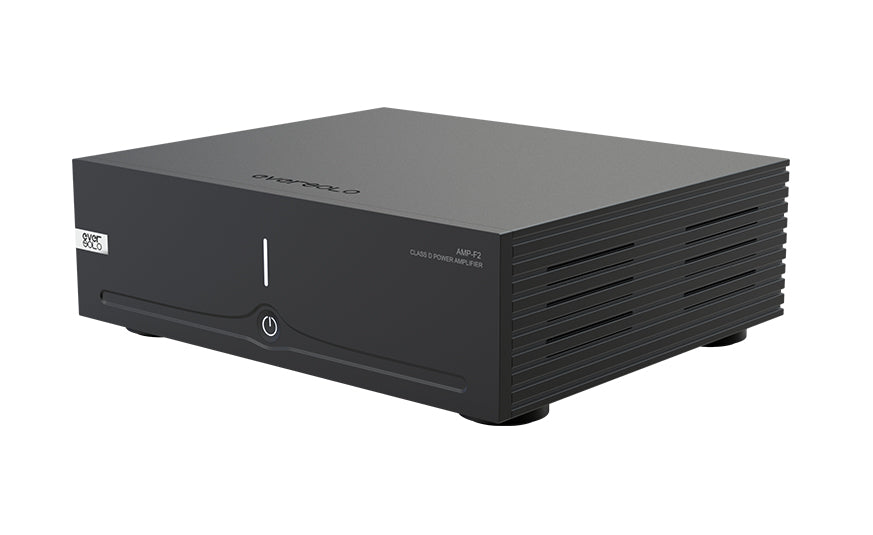

EverSolo AMP-F2

The EverSolo AMP-F2 is a result of collaboration between the Starke Sound and Eversolo teams and utilizes the INS600 module from California.

With a sampling rate of up to 600KHz, the new AMP-F2 effectively minimizes noise and improves dynamic performance thanks to the SAPS audio-specific switch power supply. Featuring an efficient Class D amplification structure and optimized circuits, the AMP-F2 delivers superior audio quality.

The AMP-F2 is bridgeable, allowing flexible configuration for 2-channel or mono-channel / multi-channel setups.

The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a constant 250W RMS (40) @ 1% THD+N.

When bridged to mono, it can support up to 450W RMS (22) with THD+N still below 1%.

This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.

Accurate Sound - Perfect Experience

Utilizing PurePath™ Ultra-HD technology and advanced integrated feedback design, the NS600 module achieves ultra-low distortion and delivers perfect high-end audio quality across the entire frequency range.

With a 600W high-efficiency, low-ripple, low-EMI switch power supply, this technology also ensures a consistent and powerful output with minimal noise, enhancing the overall dynamic performance of any system.

The AMP-F2 is the ideal pairing with DMP-A6 and DMP-A8, providing a perfect audio experience.

Furthermore, it meets the European Union ErP standards with an extremely low standby power (0.5W) and idle power consumption (14W). Its self-protection and anti-interference design also prevent disturbances from various electrical environments.

Specifications:

280W RMS at 4Ω（1%THD，per channel）130W RMS at 8Ω（1%THD，per channel）

Bridge Mode Output Power

450W RMS at 2Ω（Bridge Mode）

2 Channels - Stereo Mode

1 Channel - Bridge / Mono Mode

Class D

Frequency Response

10Hz-20kHz -1.2dB

Maximum output current

16.5A（per channel）/ 33A（Bridge）

Signal-To-Noise Ratio（SNR）

>110dB,"A" weighted 4Ω 260W

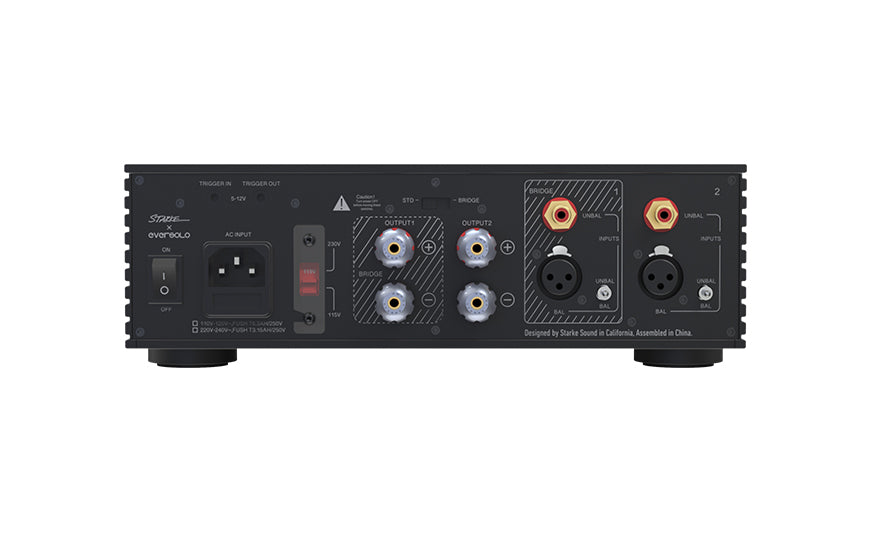

Input terminals

2-Channel RCA Input ；2-ChannelXLR Input

Input Impedance

RCA 10.5K ohm /XLR 21.7K ohm

Output terminals

2 pairs beryllium copper binding post，custom made by Starke Sound

Output Impedance

0.09 ohm 1kHz

Damping coefficient

100

Sizes

W 270 mm x D 228 mm x H 90 mm (w/ foot))

Weight

3.65Kg
