Chord Bertti
Chord Bertti

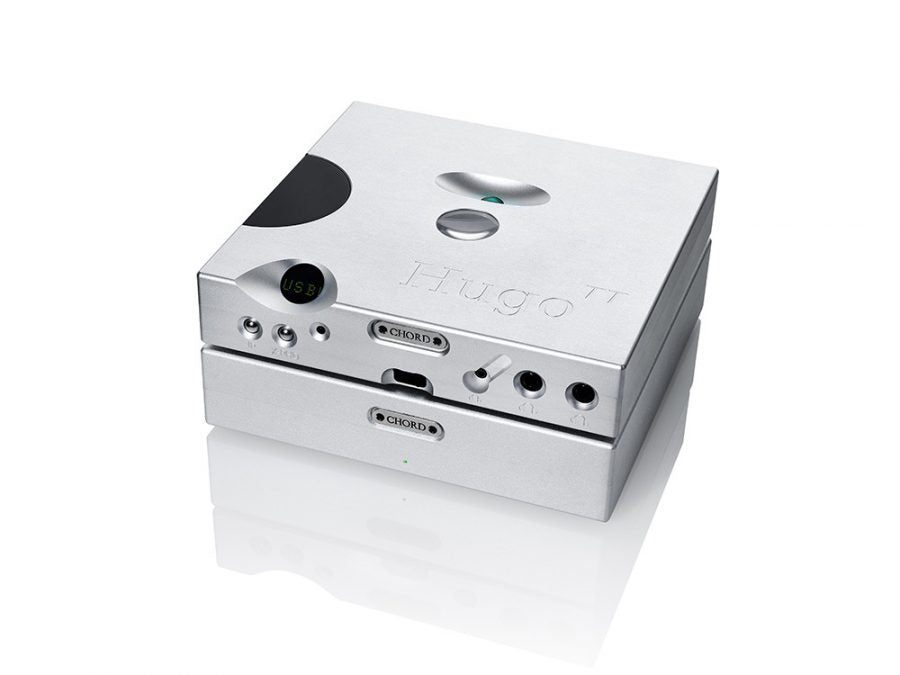

The Bertti has been designed to complement our desktop DAC/headphone amplifier, the Hugo TT 2 and shares the same compact form factor as its stablemate. The combination of our 1M-tap digital upscaling device M Scaler, Hugo TT 2 and Bertti provides a high-quality hi-fi system, with desktop dimensions and a space-saving footprint. Despite its size, the Berti sets new standards for small amplifiers and takes full advantage of Chord Electronics’ proprietary amplification technology and design know-how.
The addition of Bertti, enables owners of the Hugo TT 2 to fully exploit the device as a ‘digital preamp’, effortlessly driving a wide variety of loudspeakers, large or small, in addition to the Hugo TT 2’s headphone prowess. The Bertti is a 100-watt design, featuring both an unbalanced and balanced input, to take advantage of the Hugo TT 2’s XLR output.
Berti features two of our famous high-frequency power supplies and benefits from forced air-cooling through the aluminium casework by means of a sonically closed anechoic miniature multi-speed quadruple-fan plenum chamber, enabling the external design to be free of sharp heatsinks and, therefore, carry a stunning aesthetic. The M Scaler/Hugo TT 2/Bertti combination offers both class-leading DAC and amplification technology via headphones and loudspeakers, giving complete flexibility within the demands of busy households.

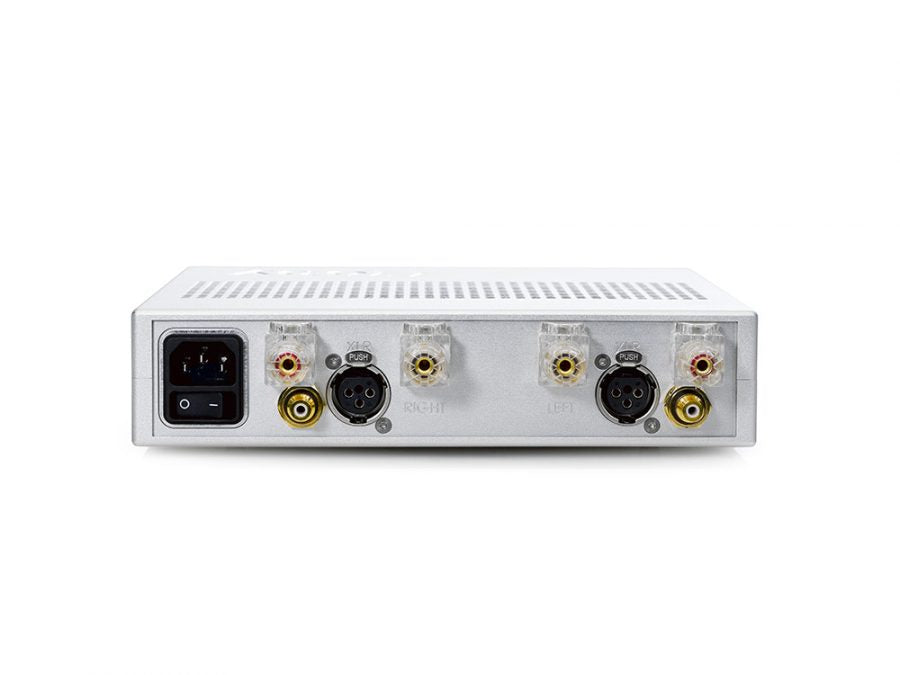

Inputs:
1x Stereo Pair of Gold Plated Balanced XLR Inputs
1x Stereo Pair of Gold Plated Unbalanced RCA Inputs
Output:
1x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals
Specifications
Output Power:
100w RMS per channel @ 0.016% distortion into 4Ω
Frequency Range:
5Hz – 100kHz +/- 0.5dB
Signal to Noise Ratio:
Better than -83dB
Channel Separation:
Better than 95dB
Input Impedance:
100kΩ Unbalanced/Balanced
Input Capacitance:
<32pf
Output Inductance:
2.6μH
Slew Rate:
70v per μS 1kHz, 20v Square Wave
Gain:
30dB
Stability:
Unconditional
Dimensions:
5.9cm (H) 23.5cm (W) 25.6cm (D)
Weight:
3.75kG
