Chord Symphonic

Features:

• Supports Moving Coil Cartidges
• HF Switch Mode Power Supply
• Selectable Gain and Impedance
• Fully Balanced Circuitry
• Solid Aluminum Chassis
• Selectable Impedance: 4.7Ω, 33Ω, 100Ω
• Selectable Gain: 40dB – 80dB

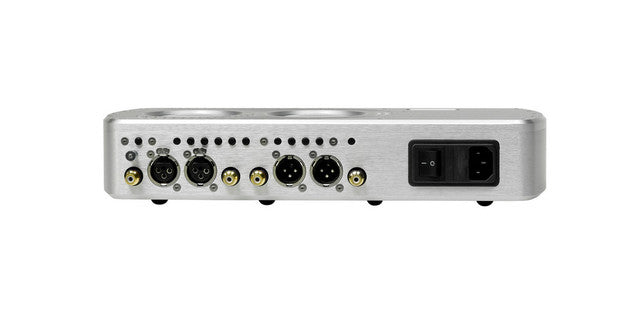

• Inputs:
• 1x Stereo Unbalanced RCA Pair
• 1x Stereo Balanced XLR PAir

Outputs:

• 1x Stereo Unbalanced RCA Pair
• 1x Stereo Balanced XLR Pair
• Technical Specifications:
• Input Noise: 1.5nV/Hz
• Max Output Voltage RMS: 10v RMS
• Equalization Range: 12Hz to 25kHz
• Equalization Response: RIAA Curve
• Equalization Accuracy: +/- 0.1dB
• Frequency Response: 5Hz – 40kHz
• Rumble Filter: Rausch Slope -24dB per octave below 50Hz
• Output Impedance: 520Ω (resistive)
• Output Drive: Can drive 600Ω at 50% output
• Input Power Supply: 50v AC – 260v AC – auto adjust 50Hz – 60Hz
• Dimensions: 333.5mm (W) x 59mm (H) x 142mm (D)
• Weight: 6kg
