Experience the Freedom of Music

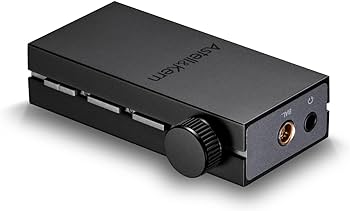

AK HB1 is a portable Bluetooth DAC/AMP that lets you effortlessly experience high-quality audio and Hi-Fi streaming services with the best performance, all without the hassle of cables.

Pair your mobile device to AK HB1 through Bluetooth and experience seamless, wireless Hi-Fi sound across various IEMs and headphones, all facilitated by its compact, lightweight design and powerful built-in amplifier.
In addition to this, AK HB1 also delivers Astell&Kern's pristine sound quality via USB DAC functionality, and offers a seamless connection to gaming devices and immersive entertainment using microphones, transforming your mobile device into a hub of endless multimedia possibilities.

  • 3.5-mm and 4.4-mm Dual Output
  • Supports LDAC and aptX™HD for High-quality Bluetooth Sound
  • Features ESS ES9281AC PRO DAC
  • Separate DAC and AMP for Premium Hi-Fi Experience
  • Plug & Play USB DAC Function
  • Interchangeable Cable (Type-C and Lightning Cable Included)
  • Supports UAC 1.0 (Gaming System)
  • Clear and Vivid Voice in Calls
  • Car Mode Supported
  • Multi-point Connection (Up To Two Devices)
  • MQA Renderer
  • Dual Output

    3.5mm,
    4.4mm
    Dual Output

  • ES9281AC PRO DAC

    ES9281AC
    PRO DAC

  • aptX™HD LDAC

    aptX™HD
    LDAC

  • Built-In Microphone

    Built-In
    Microphone

  • Smart Charging System

    Smart
    Charging
    System

  • MQA

    MQA

Premium Bluetooth for Hi-Fi Sound

AK HB1 is equipped with Qualcomm's CSR8675 Bluetooth chipset, which supports the transmission of high-resolution audio sources, ensuring a stable connection.
From LDAC, supporting 24 bit/96 kHz, to the aptX™ HD codec offering stable 24 bit/48 kHz support, AK HB1 accommodates an extensive selection of codecs, including the most commonly used AAC and SBC. This comprehensive codec support guarantees smooth wireless playback of high-resolution streaming audio from both smartphones and PCs.

Furthermore, AK HB1 features Bluetooth multi-point capability, allowing connection with up to two devices simultaneously. This feature allows you to effortlessly switch connections between various mobile devices, enabling scenarios like enjoying music from a tablet PC while concurrently receiving notifications and calls on your smartphone.


Hi-Resolution Sound Unleashed by USB DAC

AK HB1 goes beyond simple Bluetooth playback, delivering outstanding, full high-resolution sound via USB DAC connection to PCs, smartphones, tablets, and more.
Supporting Native DSD256 and 32 bit/384 kHz playback, AK HB1 ensures compatibility with a diverse range of high-quality audio sources, providing Astell&Kern's signature premium sound quality.
Additionally, equipped with a renderer function that supports MQA 8X, AK HB1 enables MQA playback without the need for external DACs or playback devices. By simply connecting AK HB1 via cable to compatible devices, which support MQA unfolding, you can enjoy MQA audio playback through network-enabled apps and streaming services from anywhere.

* To use AK HB1 as an H/W MQA renderer, a compatible S/W core decoder capable of unfolding MQA is required.


product

Precision DAC and AMP Design for Hi-Fi Sound

AK HB1 incorporates ESS’s ES9281AC PRO DAC for exceptional noise control and unparalleled ultra-high-quality Hi-Fi sound performance.

Adding to this, AK HB1 introduces an exclusive AMP circuitry that supersedes the standard built-in DAC AMP.
Its AMP enables a commanding 4 Vrms output (in Balanced connection) and dual connectivity options — 3.5 mm unbalanced and 4.4 mm balanced, catering to a wide range of IEMs and headphones.

While maintaining a compact form factor of 33 x 68.4 x 16.5 mm, we used micro resistors and capacitor parts to achieve a small footprint without compromising performance. Carefully selected ultra-small tantalum capacitors, which are used in AK player products to create a stable system and audio performance by controlling the power fluctuations, are also included to create an optimal audio circuit design. In addition, the output and audio performance are enhanced with Astell&Kern's unique power management technology to minimize current consumption in respect of the connected device.

Dual Noise Shielded Cable

To ensure optimal usability across both Android and iOS devices without the need for additional adapters, AK HB1 features an interchangeable
cable that readily supports Type-C and Lightning connections.

The AK HB1 features a dual shielded cable to minimize noise and deliver a more vivid, original sound.
The copper core wire is coated with tin to prevent corrosion and strengthen tensile force for enhanced durability.

Additionally, the entire cable is wrapped in an aluminum film to block noise with an extra layer of shielding around the power cable to further minimize noise, the biggest issue in audio, then the tin-coated copper wire is woven to minimize noise interference to sound.
Finished with a fabric jacket on top of the TPE jacket, the cable features enhanced durability and usability with perfect aesthetic appeal.

cable
Easy and Convenient, USB Plug & Play

AK HB1 simplifies the transition between Bluetooth and USB cable connections by supporting USB Plug & Play functionality.
Connect AK HB1 to your PC or smart device using a USB cable to enjoy high-resolution sound while simultaneously controlling various settings and features through the app on your Bluetooth-connected smartphone. With BT Priority Mode enabled, AK HB1 seamlessly switches to Bluetooth mode, whenever a Bluetooth signal is received while using the USB DAC function.


High Compatibility and Simultaneous Support for UAC 1.0 & 2.0 for Gaming

While modern smartphones, tablets, and PCs support UAC 2.0 connections, many gaming devices still exclusively support UAC 1.0 connections.
To cater to both scenarios, AK HB1 ensures compatibility by supporting both UAC 2.0 and UAC 1.0 connections for cross-platform quality sound experiences.
Connect AK HB1 to your gaming device such as PlayStation and Switch, and enjoy low latency and enhanced sound for an immersive gaming experience.


Seamless Experience Extended to Cars with Car Mode

Activate AK HB1's dedicated Car Mode to enjoy high-quality DAC/AMP sound effortlessly while at the wheel. Simply connect AK HB1 to your vehicle's AUX port, and its power automatically turns on/off based on your vehicle's ignition, allowing you to enjoy audio from paired devices.


Crystal-Clear Voice Calls Thanks to High-sensitivity MEMS MIC

AK HB1 ensures crystal-clear voice quality and stability thanks to Knowles's high-quality MEMS microphone technology and Qualcomm's cVc Generation 8.0 call solution with Clear Voice Capture technology, which suppresses ambient noise while delivering clear vocals to the recipient.
Furthermore, AK HB1 incorporates a 4-pole in-line MIC, enabling voice calls via wired earphones.
Experience enhanced call quality alongside AK HB1's exceptional Hi-Fi sound.

* The in-line MIC functionality is only available while USB DAC is enabled. During Bluetooth (BT) connections, the built-in microphone of HB1 handles calls.
* For 4-pole earphones, AK HB1 supports only CTIA-compliant earphones (OMTP-compliant products are not supported)

Smart Charging System

AK HB1 automatically recognizes devices when they are connected via a USB cable, whether playback or charging devices, streamlining the charging process without requiring additional setting adjustments.
Also, the charging mode can be turned on/off to allow simultaneous playback and device charging, preventing battery depletion during playback.

*
1.When connected to a charger via USB, it charges at normal speed (1 hour and 30 minutes to full charge).
2.When connected to a playback device via USB, the charging speed is adjusted, and the charging mode can be turned on/off.
Charging Mode On : Charges HB1's battery using the playback device's battery power.
Charging Mode Off : Operates only by AK HB1's battery without charging from external devices.

LED Indicators for Real-time Status

Two LED lights positioned on the side of the AK HB1 give you an overview of the current device status such as the file type being played and battery information.

[ Status LED ]
PCM (Red) / DSD (Blue) / MQA (Magenta)

[ Power LED ]
Charging (Blinking white) / Fully charged (Constant blue) / Level below 10% (Blinking red) / Level 11-20% (Constant red) / 21-60% (Constant yellow) / 61-99% (Constant green) / 100% (Constant blue)

Easy Configuration with Our Proprietary App

Install the exclusive app to use various functions and enjoy easy setup.
The AK Control app is equipped with various newly developed user functions for the AK HB1.
Users now can conveniently control Device Priority, Volume Level, User EQ setup, Car Mode and DAC Filter setting, etc.




  • mqa_logo

    MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording.
    The master MQA file is fully authenticated and is small enough to stream or download. Visit mqa.co.uk for more information.
    AK HB1 includes MQA technology, which enables you to play back MQA audio files and streams,
    delivering the sound of the original master recording.

    The MQA logo is a trade mark of MQA Limited. © MQA Limited 2018

    Discover more
  • qualcomm_logo

    Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
    Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
    aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

    Discover more
  • ldac_logo

    LDAC and LDAC logo are trademarks of Sony Corporation.

    Discover more

DESIGN

The AK HB1 embodies Astell&Kern's design philosophy with inspiration from the architectural masterpiece "Church of Light" by Tadao Ando, known for its interplay of light and shadow.

Embodying the essence of robustness and simplicity, much like concrete, the device showcases a sleek form that cleverly integrates buttons and earphone connections within the gaps between its front and back housings.
The use of silver coloring between the front and rear surfaces creates an illusion of light gracefully flowing between the two facades.

Intuitively designed with a comfortable grip, the size and placement of the wheel ensure effortless volume control.
The wheel features a combination of aluminum and rubber materials for improved grip and accuracy, ensuring easy and accurate control.







Specification

  • General Specifications
    • Model

      AK HB1

    • Body Color

      Shadow Black

    • Body Material

      Polycarbonate (Body) / Aluminum (Volume Wheel)

    • Bluetooth

      Chipset : Qualcomm CSR8675
      Version : 5.0
      Codec : LDAC, aptX™HD, aptX™, AAC, SBC
      Profile : A2DP, AVRCP, HFP

    • DAC

      ESS ES9281AC PRO

    • Sample rate

      PCM : 8kHz ~ 384kHz (8/16/24/32bits per Sample)
      DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo

    • Output Level

      Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load)

    • Input

      USB Type-C (Supports UAC 1.0 and UAC 2.0)

    • Output

      3.5mm (Supports CTIA standard 4-pole earphones/headphones), 4.4mm (Only 5-pole supported)

    • Dimensions

      33 x 68.4 x 16.5mm (Excluding volume wheel)
      39.8 x 68.4 x 16.5mm (Including volume wheel)

    • Weight

      About 1.41oz (40g)

    • Feature Enhancements

      Firmware upgrade supported

  • Audio Specifications
    • Frequency Response

      ±0.135dB (Condition : 20Hz~20kHz) Unbalanced │ ±0.136dB (Condition : 20Hz~20kHz) Balanced

    • S/N

      117dB @ 1kHz, Unbalanced │ 118dB @ 1kHz, Balanced

    • Crosstalk

      -112dB @ 1kHz, Unbalanced │ -112dB @ 1kHz, Balanced

    • THD+N

      0.0005% @ 1kHz, Unbalanced │ 0.0005% @ 1kHz, Balanced

    • IMD SMPTE

      0.0003% 800Hz 10kHz (4:1) Unbalanced │ 0.0003% 800Hz 10kHz (4:1) Balanced

    • Output Impedance

      Unbalanced Out 3.5mm (2.5ohm) │ Balanced Out 4.4mm (2ohm)

  • Battery
    • Capacity

      600mAh 3.8V Li-Polymer

    • Charge Time

      about 1.5hours

    • Playback Time

      about 6hours (Standard : AAC)
